230-112-003-022C VDO Pressure Switch 0.90 Bar - M10
search
  • 230-112-003-022C VDO Pressure Switch 0.90 Bar - M10

VDO Pressure switch 0.90 Bar - M10

Part-number:

VDO 230-112-003-022C

  • Pressure switching point: 0.90 Bar ± 0.15 Bar
  • Thread: M10 x 1
  • Contact closes when pressure drops
  • Output: Min to mass
  • Switching capacity: maximum 5 watts
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 85365080
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description oil pressure switch:

VDO 230 112 003 022C Specifications:

Mechanical properties:

Pressure switching point: 0.90 Bar ± 0.15 Bar
Pressure measurement range: 0 - 12 Bar
Maximum pressure: 30 Bar for 2 seconds

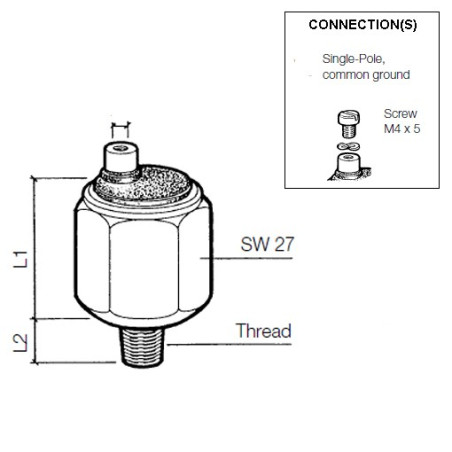

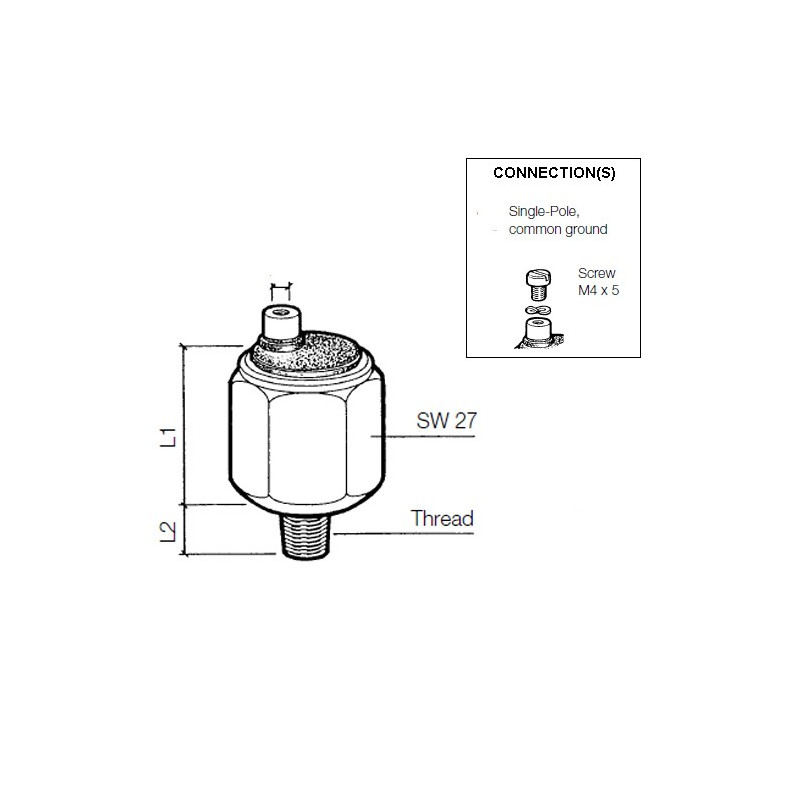

Thread: M10 x 1 Conical short
Thread + nut length (L1): 26 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating Temperature: –25 °C to +120 °C
Housing: Hexagon 27 mm with aeration valve
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Switch function: Contact closes at pressure < 0.90 Bar
Pressure switch output signal: 1-pole min to ground
Contact response: Slow
Switching capacity: Maximum 5 Watt non-inductive
Pressure switch connection: M4 Screw

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 131 - 132
Type of connection: Model: 1A7
VDO Pressure switches are used in, among others: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 230 112 003 022C Pressure Switch
  • VDO Sensors are - unless otherwise stated - supplied without connection material
230-112-003-022C

Data sheet

Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
Contact closes when pressure drops
Sensor signal
Minus in mass
Thread
M10 x 1 Male conical short
Switch point
0.90 Bar
Category
Pressure switches
Article status
Expired product
Alternate format
230 112 003 022C
230/112/3/22C

Specific References

MPN
230-112-003-022C
