VDO Pressure switch 2.00 Bar - M10
Part-number:
VDO 230-112-004-004C
- Pressure switching point: 2.00 Bar ± 0.20 Bar
- Thread: M10 x 1
- Contact closes when pressure drops
- Output: Min to mass
- Switching capacity: maximum 5 watts
Logistical information:
- Weight: 0.50kg
Technical description oil pressure switch:
VDO 230 112 004 004C Specifications:
Mechanical properties:
| Pressure switching point: | 2.00 Bar ± 0.20 Bar |
| Pressure measurement range: | 0 - 12 Bar |
| Maximum pressure: | 30 Bar for 2 seconds |

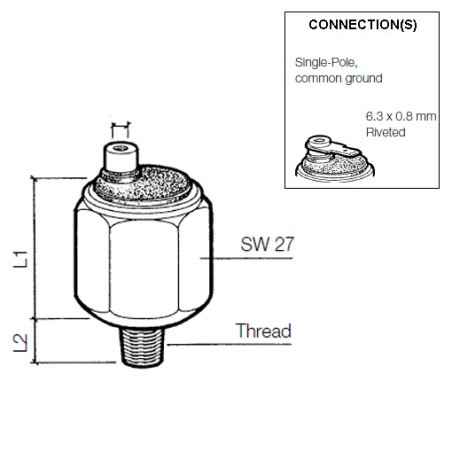

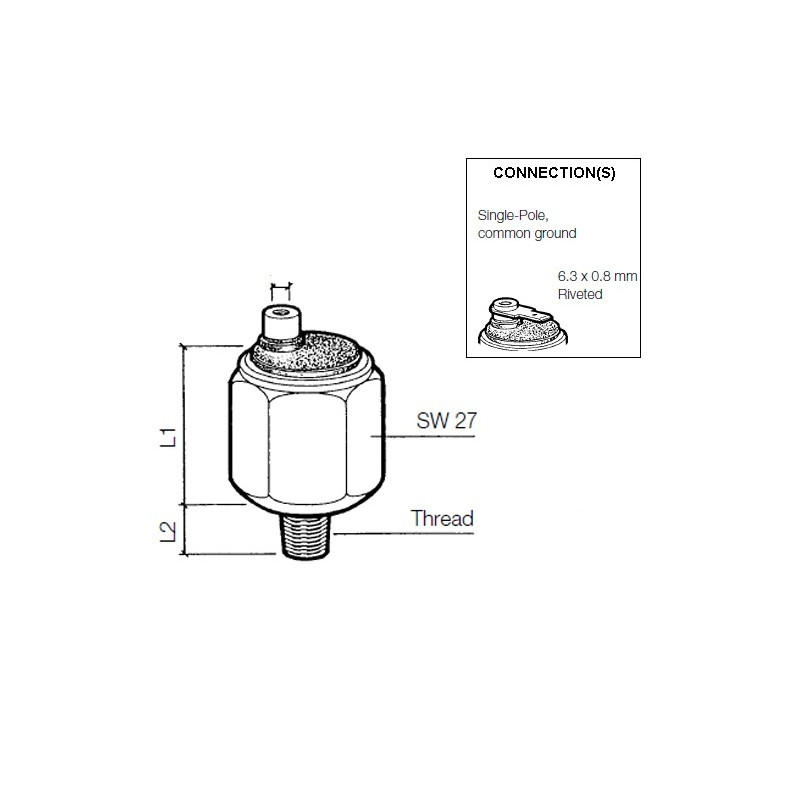

| Thread: | M10 x 1 Conical short |
| Thread + nut length (L1): | 26 mm |
| Thread length (L2): | 11 mm |
| Torque: | 30 Nm |
| Operating Temperature: | –25 °C to +120 °C |
| Housing: | Hexagon 27 mm with aeration valve |
| Pressure medium: | Oil - petroleum - diesel - gasoline - air |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Switch function: | Contact closes at pressure < 2.00 Bar |
| Pressure switch output signal: | 1-pole min to ground |
| Contact response: | Slow |
| Switching capacity: | Maximum 5 Watt non-inductive |
| Pressure switch connection: | Flat plug 6.3 x 0.8 mm 90° |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 131 - 132 |
| Type of connection: | Model: 1C7 |
| VDO Pressure switches are used in, among others: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 230 112 004 004C Pressure Switch
- VDO Sensors are - unless otherwise stated - supplied without connection material
230-112-004-004C
Data sheet
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Signal analog
- Contact closes when pressure drops
- Sensor signal
- Minus in mass
- Thread
- M10 x 1 Male conical short
- Switch point
- 2.00 Bar
- Category
- Pressure switches
- Article status
- Expired product
- Alternate format
- 230 112 004 004C
230/112/4/4C
Specific References
- MPN
- 230-112-004-004C
VDO 230-112-004-004C
- Pressure switching point: 2.00 Bar ± 0.20 Bar
- Thread: M10 x 1
- Contact closes when pressure drops
- Output: Min to mass
- Switching capacity: maximum 5 watts
