230-112-007-005C VDO Pressure switch 0.30 Bar - M14
search
  • 230-112-007-005C VDO Pressure switch 0.30 Bar - M14

VDO Pressure switch 0.30 Bar - M14

Part-number:

VDO 230-112-007-005C

  • Pressure switching point: 0.30 Bar ± 0.15 Bar
  • Thread: M14 x 1.5
  • Contact opens when pressure rises
  • Output: Isolated from ground
  • Switching capacity: maximum 5 watts
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 85365080
  • Ean Code: 4103590948915
  • Weight: 0.28kg
Discontinued article
Replacement article on request

Technical description oil pressure switch:

VDO 230 112 007 005C Specifications:

Mechanical properties:

Pressure switching point: 0.30 Bar ± 0.15 Bar
Pressure measurement range: 0 - 12 Bar
Maximum pressure: 30 Bar for 2 seconds
Thread: M14 x 1.5

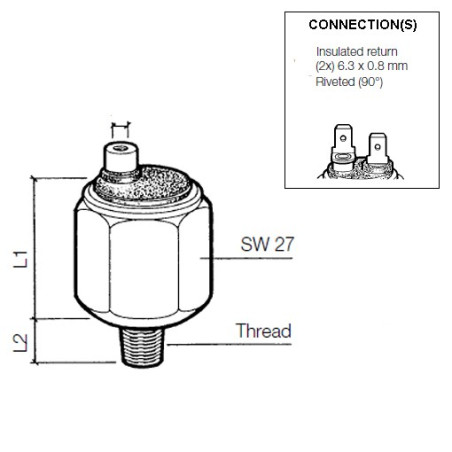

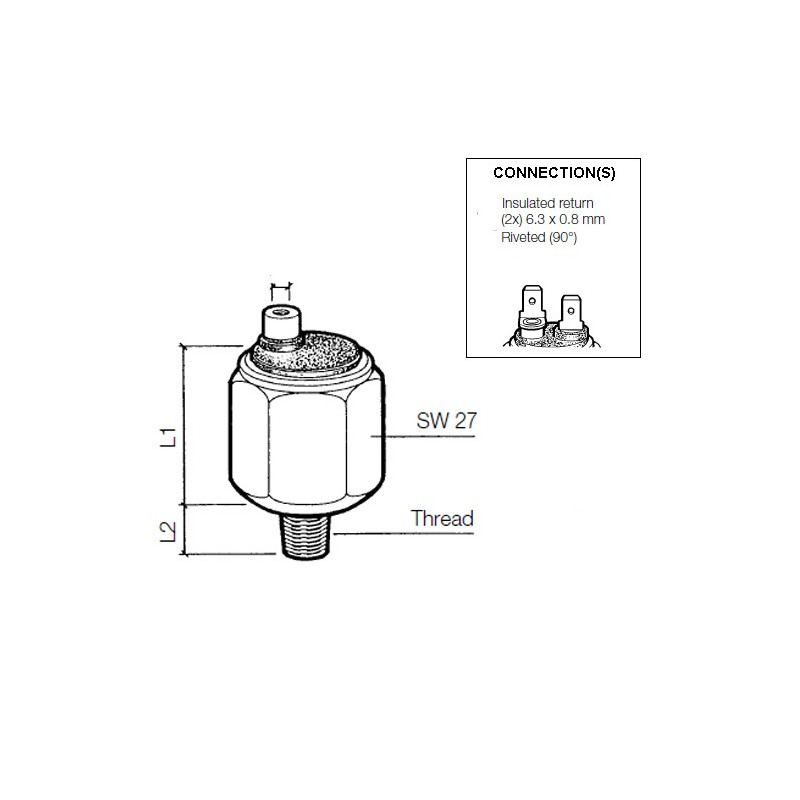

Thread + nut length (L1): 24.5 mm
Thread length (L2): 12 mm
Torque: 60 Nm
Operating Temperature: –25 °C to +120 °C
Housing: Hexagon 27 mm with aeration valve
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Switch function: Contact opens at pressure > 0.30 Bar
Pressure switch output signal: 2-pole insulated from ground
Contact response: Slow
Switching capacity: Maximum 5 Watt non-inductive
Pressure switch connection: Flat plug 6.3 x 0.8 mm (2x)

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 133 - 134
Type of connection: Model: 1F7
VDO Pressure switches are used in, among others: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 230 112 007 005C Pressure Switch
  • VDO Sensors are - unless otherwise stated - supplied without connection material
230-112-007-005C

Data sheet

Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
Contact closes when pressure drops
Sensor signal
Isolated from mass
Thread
M14 x 1.5 Male
Switch point
0.30 Bar
Category
Pressure switches
Article status
Discontinued product
Alternate format
230 112 007 005C
230/112/7/5C

Specific References

EAN13
4103590948915
MPN
230-112-007-005C
