VDO Square wave speed - speed sensor - M18
Part-number:
VDO A2C59513983
- Sensor type: Square wave - 400Hz
- Thread: M18 x 1.5 Male
- Power supply: 8 - 15V stabilized
- Output: Isolated from ground
- Connection: Bayonet 4-pole 2.8mm
Logistical information:
- HS Code: 90299000
- Ean Code: 4103590692542
- Weight: 0.09kg
Technical description Square Wave Speed and Speed Sensor:
VDO A2C 595 13983 Specifications:
Mechanical properties:
| Thread: | M18 x 1.5 |
| Maximum frequency: | 400 Hz = 24,000 Pulses per minute |
| Operating Temperature: | -40°C to +130°C |
| Sensor length overall (L2): | 74 mm |
| Sensor element length including thread (L1): | 25 mm |
| Sensor diameter: | 15.5 mm |
| Distance sensor - pulse generator: | 0.3 mm to 1.4 mm |
| Duty cycle: | (t on + t off) / t on = 1.43 to 3.33 |
Electrical properties:
| Supply voltage: | 8 - 15V Stabilized |
| Output signal: | Isolated from mass |
| Connection: | Connector 4-pin bayonet contacts 3 x 0.8 mm |
| Power consumption: | 12 mA |
Datasheets - Tables:
| 2010 EU VDO Sensors Catalog Download | Page 56 - 57 |

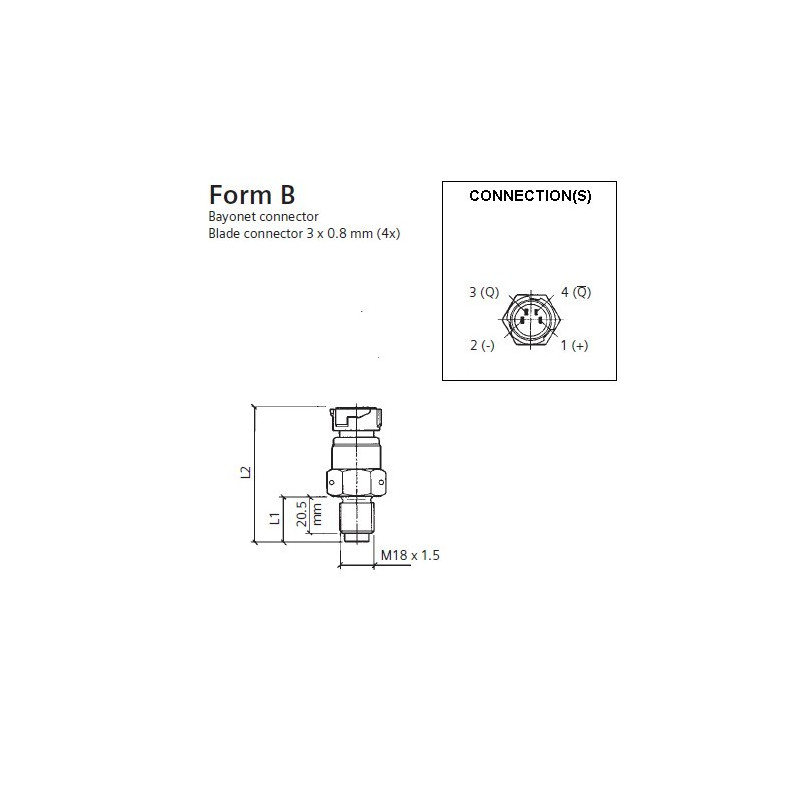

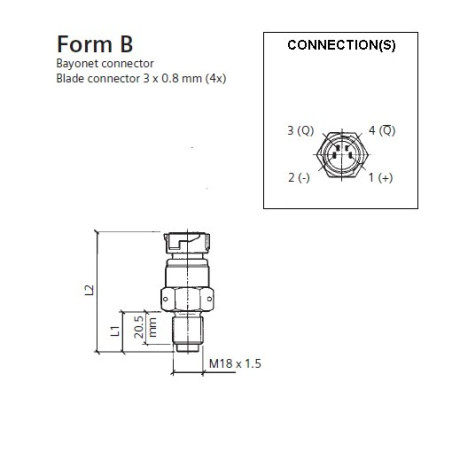

| Image: | B |
Retail packaging:
- VDO A2C59513983 Square wave speed sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
A2C59513983
Data sheet
- Measuring range
- 0 - 400 Hz
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Sensor type
- RPM Square Wave
- Sensor signal
- Isolated from mass
- Thread
- M18 x 1.5 Male
- Country of origin
- Czech Republic
- Functionality
- Square wave sensors
- Connector type
- 4-pole bayonet
- Category
- Square wave sensors
- Article status
- Expired product
Specific References
- EAN13
- 4103590692542
- MPN
- A2C59513983
VDO A2C59513983
- Sensor type: Square wave - 400Hz
- Thread: M18 x 1.5 Male
- Power supply: 8 - 15V stabilized
- Output: Isolated from ground
- Connection: Bayonet 4-pole 2.8mm
