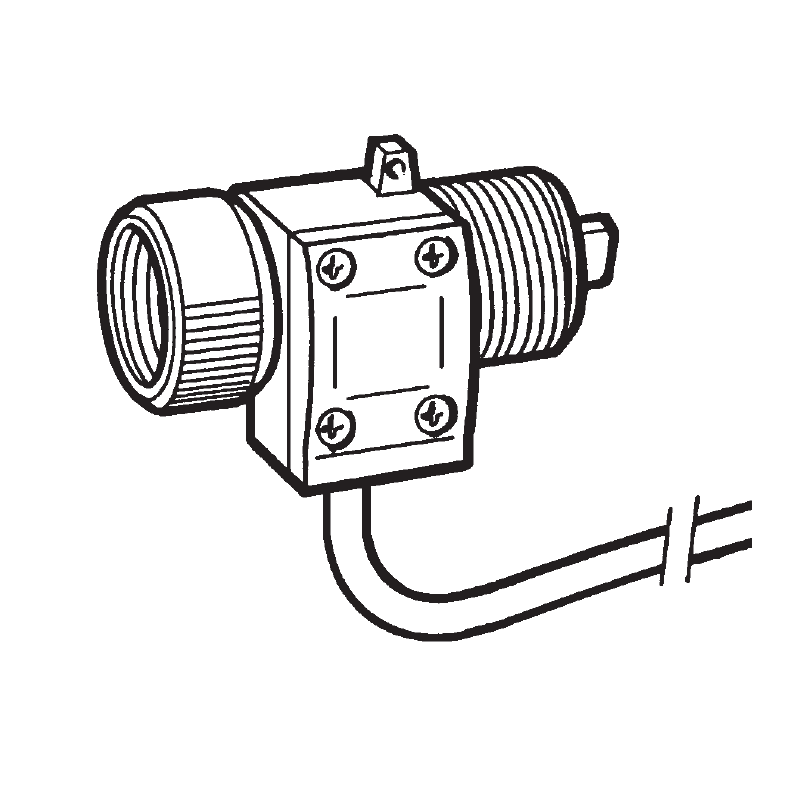

VDO Hall tacho - speed sender - 5.000 RPM - M22
Part-number:
VDO X10-340-006-001
- Sender type: Hall 5.000 RPM
- Thread: M22 x 1.5 Female
- Operating voltage: 4.5 - 28V
- Sensor signal: 2-pole insulated return
- Connector: 5 meter cable
Logistical information:
- Weight: 0.50kg
Description Hall speedo and tacho sender:
VDO X10 340 006 001 Full technical specifications:
Mechanical features:
| Thread: | M22 x 1.5 Female |
| Maximum number of revolutions: | 5.000 RPM |
| Operating temperature: | -40 °C to +150 °C |
| Sender length overall: | 57.6 mm |
| Lengte thread: | 8 mm ± 2 mm |
| Sender driving connection: | 3.1 mm Male |
| Protection: | IP 67 |
Electrical features:
| Operating voltage: | 4.5 - 28V DC |
| Signal output: | Insulated return |
| Connector: | 5 meter cable |
| Current consumption: | 9 mA |
| Pulses per revolution: | 8 |
Datasheets and Tables:
| TU00-0340-5204620 Hall Sender 07/03 | Page 4 |
| Image: | 1 and 2 |
Retail package:
- VDO X10-340-006-001 Hall tacho - speedo sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
X10-340-006-001
Data sheet
- Tacho Measurement range
- 0 - 5.000 RPM
- Packaging
- VDO Sensor retail package
- Application
- VDO Engine monitoring
- Sensor type
- RPM Hall effect
- Sensor signal
- Insulated return
- Thread
- M22 x 1.5 Female
- Functionality
- Hall-Effect sensors
- Connector type
- 5 Meter cable
- Category
- Hall-Effect sensors
- Article status
- Discontinued product
- Alternative notation
- X10 340 006 001
X10/340/6/1
Specific References
- MPN
- X10-340-006-001
VDO X10-340-006-001
- Sender type: Hall 5.000 RPM
- Thread: M22 x 1.5 Female
- Operating voltage: 4.5 - 28V
- Sensor signal: 2-pole insulated return
- Connector: 5 meter cable
