VDO Induction speed - speed sensor - M18

€102.41 (tax incl.)

€84.64 (VAT Excl.)

Part-number:
VDO 340-804-007-019C
  • Sender type: Inductive - 250Hz
  • Thread: M18 x 1.5
  • Resistance: 1,050 ± 100 Ohm
  • Sensor signal: 2-pole insulated return
  • Connector: Blade 6.3-4.8mm
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90299000
  • Ean Code: 4103590690494
  • Weight: 0.08kg
Quantity

Description Inductive speedo and tacho sender:

VDO 340 804 007 019C Full technical specifications:

Mechanical features:

Thread:M18 x 1.5 Male
Frequency:250 Hz = 15,000 Pulses per minute
Operating temperature:-25°C to +140°C
Sender length overall (L4):79.7 mm
Sender length (L1):18.2 mm
Sender length (L2):70.7 mm
Sender length (L3):71.8 ± 0.1 mm

Electrical features:

Operating voltage:Independent
Signal output:Insulated return
Connector:Blade 1 x 6.3 x 0.8 mm and 1 x 4.8 x 0.8 mm
Internal resistance:1,050 Ohm ± 100 Ohm

Datasheets and Tables:

2010 EU VDO Sensors Catalogue DownloadPage 64 - 65

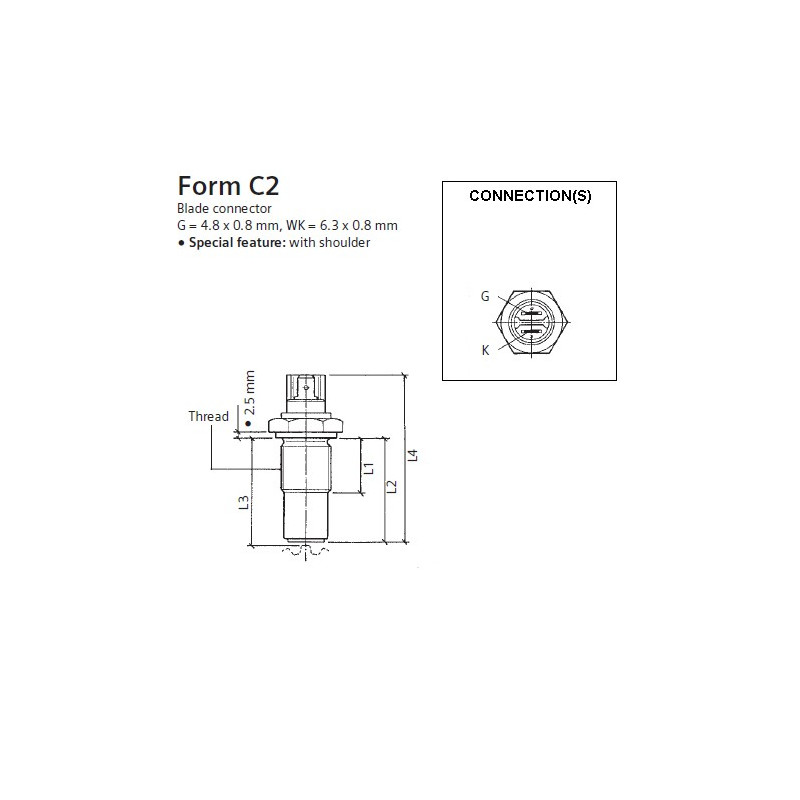

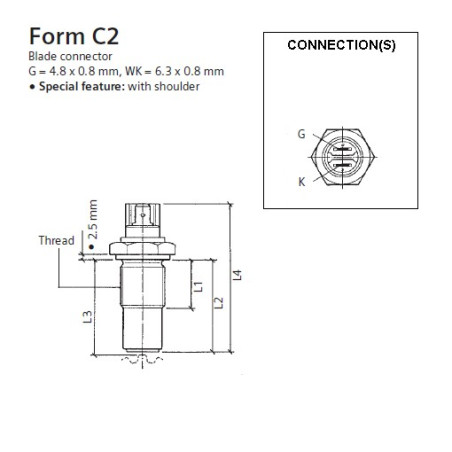

Image:C2

VDO Sender 340-804-007-019C replaces manufacturer OEM number:

AGCO Part number:385200230030
CLAAS Part number:00132300
FENDT Part number:385200230030
ZF Part number:1557007100261

Retail package:

  • VDO 340-804-007-019C Inductive tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
340-804-007-019C

Data sheet

Measuring range
0 - 250 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Induction
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Country of origin
Czech Republic
Functionality
Induction sensors
Connector type
Flat plug 6.3 mm and 4.8 mm
Category
Induction sensors
Article status
Available to order
Alternate format
340 804 007 019C
340/804/7/19C

Specific References

EAN13
4103590690494
MPN
340-804-007-019C
