340-804-007-020C VDO Induction speed - speed sensor - M18
search
  • 340-804-007-020C VDO Induction speed - speed sensor - M18

VDO inductive speed - speed transmitter - M18

€81.48 (tax incl.)

€67.34 (VAT Excl.)

Part-number:

VDO 340-804-007-020C

  • Sender type: Inductive - 250Hz
  • Thread: M18 x 1.5
  • Resistance: 1,050 ± 100 Ohm
  • Sensor signal: 2-pole insulated return
  • Connector: Blade 6.3-4.8mm
  • With a collar and a hex nut
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90318080
  • Weight: 0.50kg
Quantity

Description Inductive speedo and tacho sender:

VDO 340 804 007 020C Full technical specifications:

Mechanical features:

Thread: M18 x 1.5 Male
Frequency: 250 Hz = 15,000 Pulses per minute
Operating temperature: -25°C to +140°C
Sender length overall (L4): 62 mm
Sender length (L1): 20 mm
Sender length (L2): 39 mm
Sender length (L3): 40.1 ± 0.1 mm

Electrical features:

Operating voltage: Independent
Signal output: Insulated return
Connector: Blade 1 x 6.3 x 0.8 mm and 1 x 4.8 x 0.8 mm
Internal resistance: 1,050 Ohm ± 100 Ohm

Datasheets and Tables:

2010 EU VDO Sensors Catalogue Download Page 64 - 65

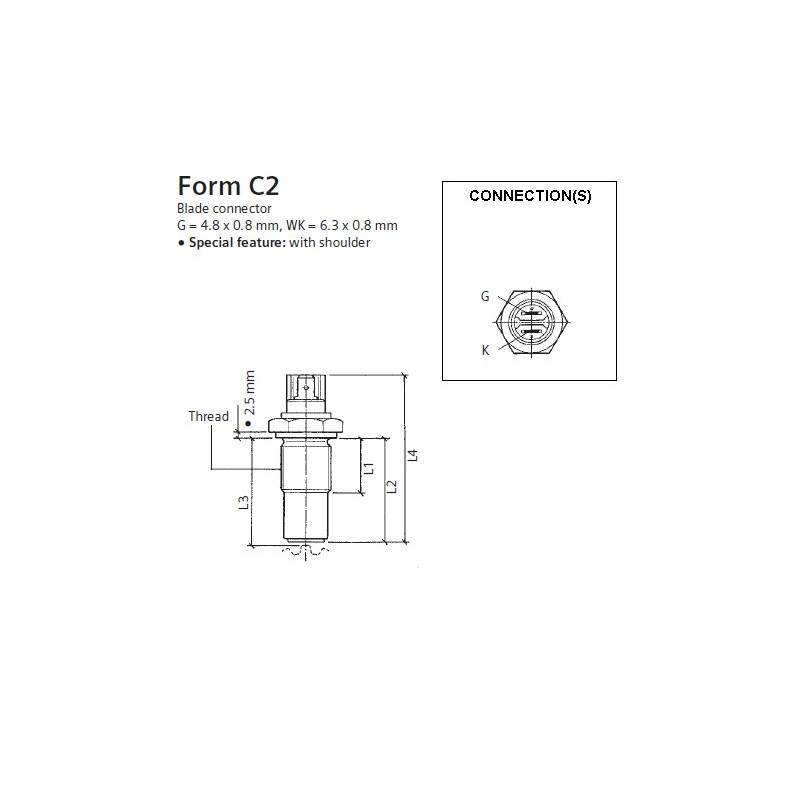

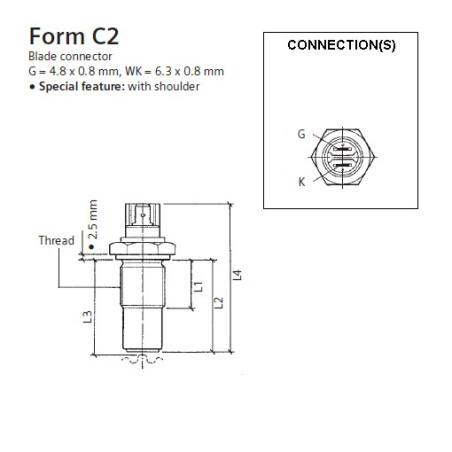

Image: C2

VDO Sender 340-804-007-020C replaces manufacturer OEM number:

AGCO Part number: 192200230030
FENDT Part number: 192200230030

Retail package:

  • VDO 340-804-007-020C Inductive tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
340-804-007-020C

Data sheet

Measuring range
0 - 250 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Induction
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Functionality
Induction sensors
Connector type
Flat plug 6.3 mm and 4.8 mm
Category
Induction sensors
Article status
Available to order
Alternate format
340 804 007 020C
340/804/7/20C
L1 Length
20 mm
L2 Length
39 mm
L3 Length
40.1 ± 0.1 mm
L4 Length
62 mm

Specific References

MPN
340-804-007-020C
