VDO Mechanical speed - speed sensor - M18
Part-number:
VDO 340-811-001-003B
- Sensor: Mechanical 3,000 RPM
- Thread: M18 x 1.5 (2x)
- Frequency: 100 Hz per 1,000 RPM
- Output: Isolated from ground
- Connection: Kostal 2-pole pin 4mm
Logistical information:
- HS Code: 85432000
- Weight: 0.50kg
Technical description Mechanical Speed and Speed Sensor:
VDO 340 811 001 003B Specifications:
Mechanical properties:
| Thread: | M18 x 1.5 |
| Maximum speed: | 3,000 RPM |
| Operating Temperature: | -25 °C to +100 °C |
| Sensor length overall: | 57 mm |
| Maximum drive torque: | 30 pcm |
Electrical properties:
| Supply voltage: | Independent |
| Output signal: | Isolated from mass |
| Connection: | Connector 2-pole Kostal Pin diameter 4 mm |
| Internal resistance: | 75 Ohm ± 5 Ohm |
Datasheets - Tables:
| 2010 EU VDO Sensors Catalog Download | Page 58 - 59 |

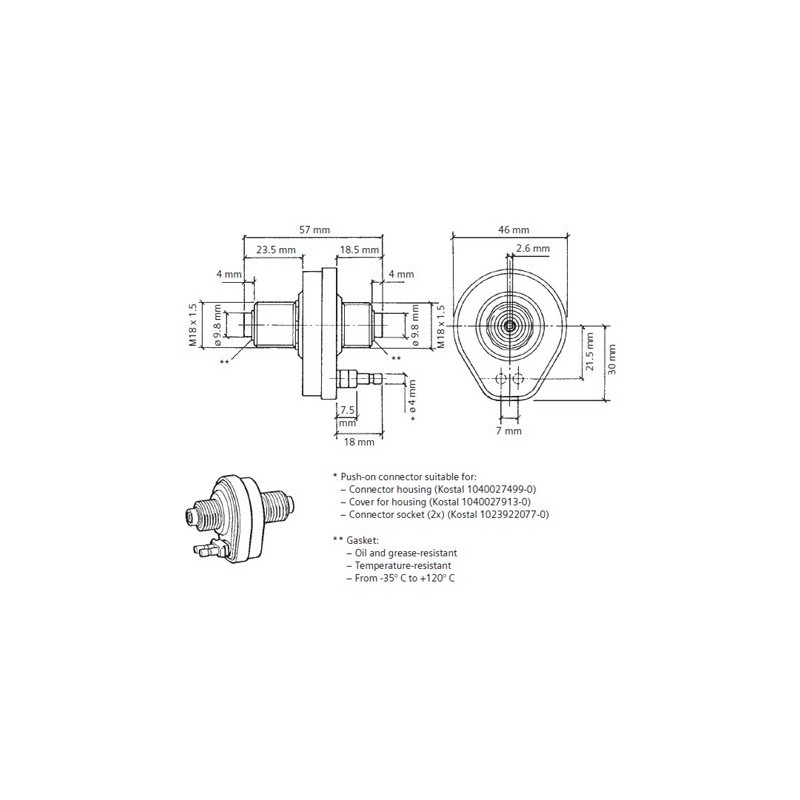

| Image: | 1 |
VDO OEM Sensor 340-811-001-003B replaces manufacturer number
| CLAAS Part number: | 06040150 |
| MAN Part number: | 81.27121-0003 |
Retail packaging:
- VDO 340-811-001-003B Mechanical speed sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
340-811-001-003B
Data sheet
- Speed Measuring range
- 0 - 3,000 RPM
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Sensor type
- RPM Frequency generator
- Sensor signal
- Isolated from mass
- Thread
- M18 x 1.5 Male
- Functionality
- Frequency Generator Sensors
- Connector type
- 2-pole Kostal
- Category
- Frequency Generator Sensors
- Article status
- Discontinued product
- Alternate format
- 340 811 001 003B
340/811/1/3B
Specific References
- MPN
- 340-811-001-003B
VDO 340-811-001-003B
- Sensor: Mechanical 3,000 RPM
- Thread: M18 x 1.5 (2x)
- Frequency: 100 Hz per 1,000 RPM
- Output: Isolated from ground
- Connection: Kostal 2-pole pin 4mm
