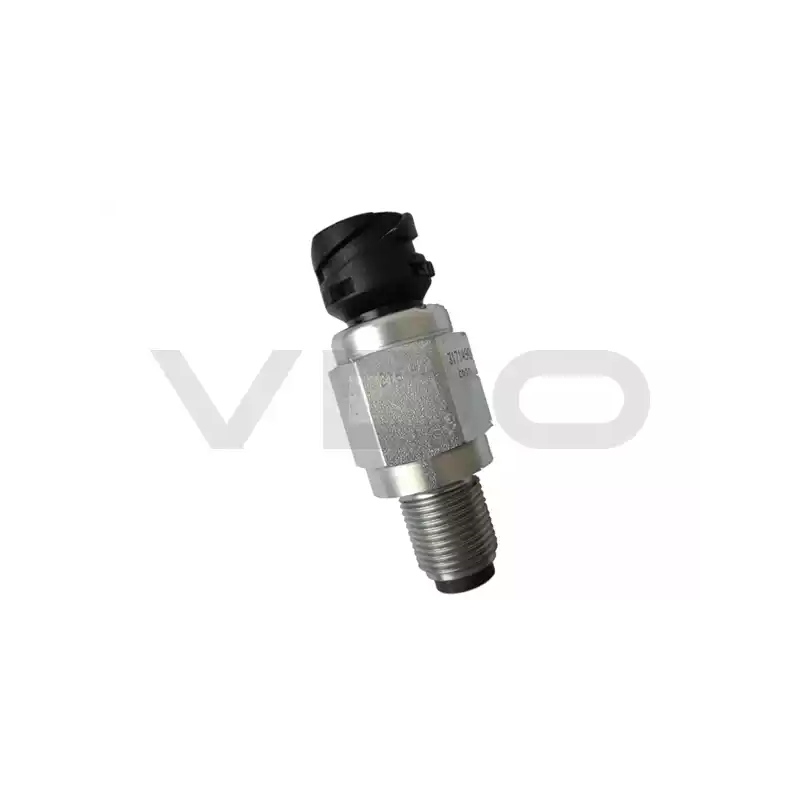

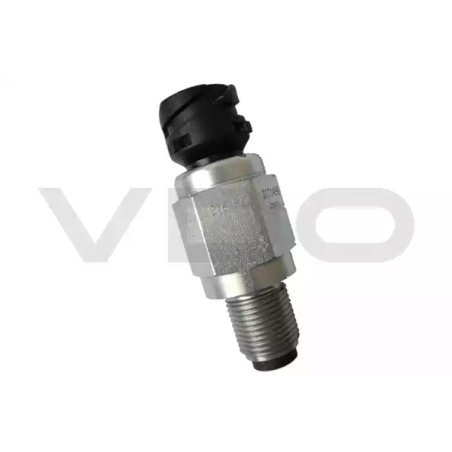

VDO Square wave speed sensor

€243.88 (tax incl.)

€201.55 (VAT Excl.)

Part-number:

340-216-009-002Z

  • Sender type: Blocking Oscillator - 400Hz
  • Power supply: 8 - 15V Stabilized
  • Sensor signal: 2-pole insulated return
  • Connector: Bayonet 4-pole 2.8mm
Logistical information:
Limited availability of run-out itemClick here for detailed information.
  • HS Code: 90318080
  • Ean Code: 4103590929495
  • Weight: 0.11kg
Quantity

Description Blocking Oscillator speedo and tacho sender:

VDO 340 216 005 001C Full technical specifications:

Mechanical features:

Thread: M18 x 1.5 Male
Maximum frequency: 400 Hz = 24,000 Pulses per minute
Operating temperature: -40°C to +130°C
Sender length overall (L2): 133 ± 1 mm
Sender element length including thread (L1): 90.2 mm
Sender diameter: 15.5 mm
Distance sender - pulse generator: 0.3 mm to 1.4 mm
Duty cycle: (t on + t off) / t on = 1.43 to 3.33

Electrical features:

Operating voltage: 8 - 15V DC Stabilized
Signal output: Insulated return
Connector: Connector 4-pole bayonet contacts 3 x 0.8 mm
Current consumption: 12 mA

Datasheets and Tables:

2010 EU VDO Sensors Catalogue Download Page 56 - 57
Image: A

Retail package:

  • VDO 340-216-009-002Z Blocking Oscillator tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
340-216-009-002Z

Data sheet

Measuring range
0 - 400 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Square Wave
Sensor signal
Isolated from mass
Country of origin
Czech Republic
Functionality
Square wave sensors
Connector type
4-pole bayonet
Category
Square wave sensors
Article status
Limited availability of run-out item
Alternate format
340 216 009 002Z
340/216/9/2Z

Specific References

EAN13
4103590929495
MPN
340-216-009-002Z
