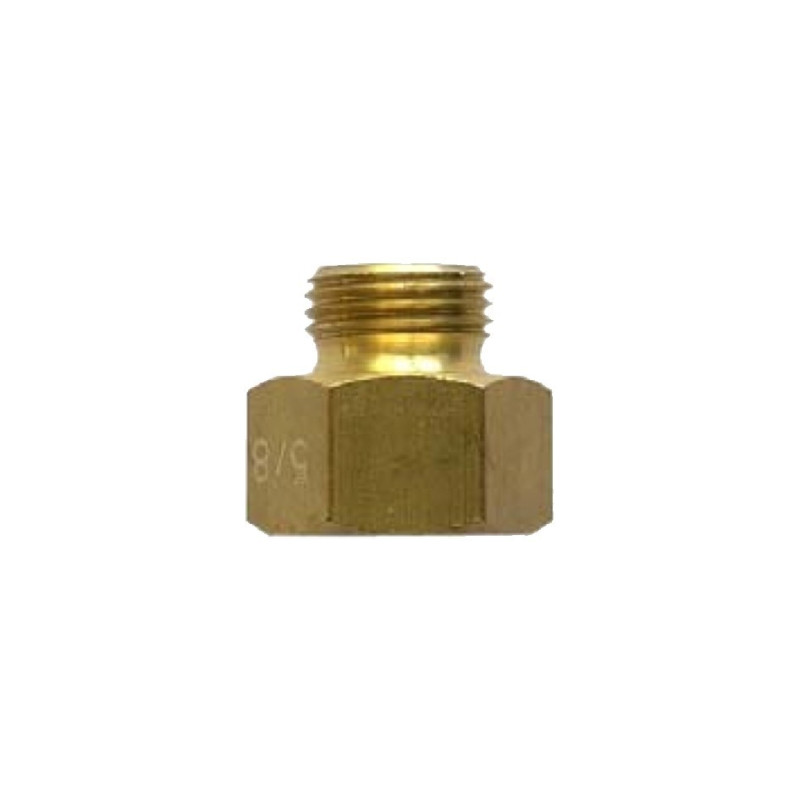

Sensor adapter M10 x 1 Female thread - 1/8" - BSP External thread
€9.80
(tax incl.)
€8.10 (VAT Excl.)
Part-number:
MKP-6640103060
- M10 x 1 Internal thread (sensor)
- 1/8" - 28 BSP External thread (engine)
- Material: Brass
- Maximum torque: 7 Nm
- Non standard sizes on request
Logistical information:
- Weight: 0.50kg
Description sensor thread adapter:
These adapters are used when there is a different thread between the sensor and the engine.
MKP-6640103060 Sender adapter
Mechanical features:
| For temperature and pressure senders with: | M10 x 1 External thread |
| Material | Brass |
| Maximum torque: | 7 Nm |
| Adapter internal thread for sensor connection: | M10 x 1 |
| Adapter external thread for engine connection: | 1/8"-28 BSP |
Retail package:
- MKP-6640103060 Sensor thread adapter
- Other thread sizes and quantations on request
MKP-6640103060
Data sheet
- Packaging
- Sensor adapter retail packaging
- Series
- Sensor thread adapters
- Category
- Sensor adapters
- Article status
- Available to order
- Adapter male thread (Motor)
- 1/8"-28 BSP
- Adapter female thread (Sensor)
- M10 x 1
Specific References
- MPN
- MKP-6640103060
MKP-6640103060
- M10 x 1 Internal thread (sensor)
- 1/8" - 28 BSP External thread (engine)
- Material: Brass
- Maximum torque: 7 Nm
- Non standard sizes on request
