  • 333-035-018G VDO Cockpit International Tachometer 8,000 RPM 52mm 12V

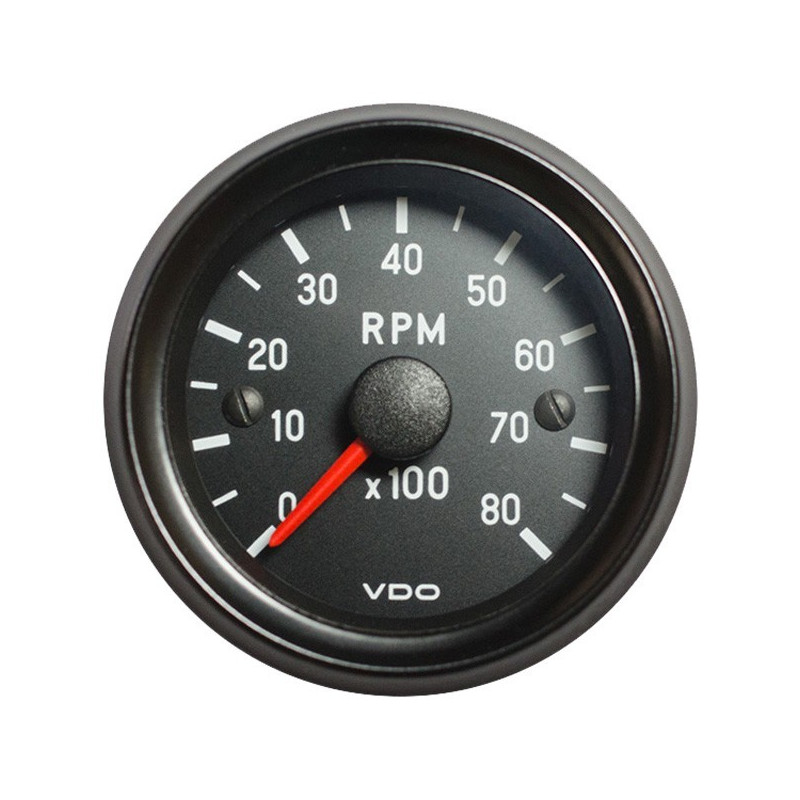

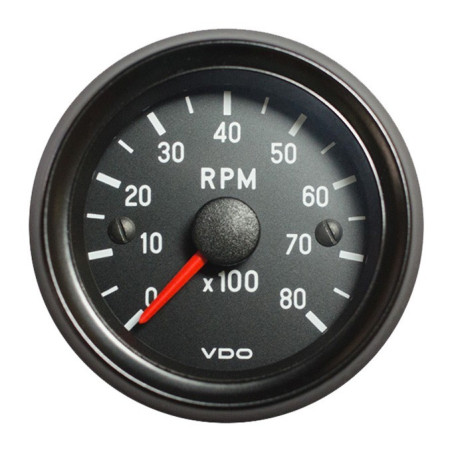

VDO Cockpit International Tachometer 8,000 RPM 52mm 12V

Part-number:

VDO 333-035-018G

  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measuring range: 0 to 8,000 RPM
  • Supply voltage: 12 Volts DC
  • Retail packaging 1 Toerenteler
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90292031
  • Ean Code: 410359092535
  • Weight: 0.19kg
Discontinued article
Replacement article on request

Functional description Cockpit International Toerenteler:

VDO Cockpit International 333 035 018G Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 83 mm
Panel thickness with spinlock nut: Optional 0.5mm - 23mm
Panel thickness with bracket mounting: 0.5 mm - 8 mm
Flushmount mounting: None

Functional:

Speed measuring range: 0 to 8,000 RPM
Tachometer input signal: Alternator Connection Clamp: W
Ignition connection Terminal 1
Measurement accuracy: No Statement VDO Available
Connection: Flat plug 6.3 x 0.8mm (4x)
Connection scale lighting: Flat plug 6.3 x 0.8mm (2x)

Power supply:

Supply voltage: 11 - 16 Volt DC
Power consumption without shell lighting: < 100 mA
Reverse polarity protection: Yes
Short-circuit resistance: No VDO

Scale & pointer:

Graduation: 320°
Scale color: Black
Scale lighting: Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional
Pointer: Red backlight
Alarm indication: None
Programmable: Yes

Version:

Model: Cockpit International
Front glass type: Single - Anti-Glare
Standard front ring: Triangle black (Screw ring)

Degree of protection and certification:

Front protection class: IP64 (DIN 40050) - Ozone resistant - UV resistant
Back protection class IP42 (DIN 40050)
Relative humidity: No statement VDO available
Operating Temperature: -20°C to +70°C
CE Certification: Yes
DNV GL Certification: No Statement VDO Available
Vibration test 8 hours: Max: 1G - 25Hz - 2000Hz
EMC Test: According to EN 13309 and ISO 13677
Nominal position: NL 0 to NL 90 - DIN 16257
Housing: Plastic Fire Retardant

Retail packaging:

  • VDO Cockpit International 333 035 018G Tachometer
  • Order connection material separately
  • Chrome-plated mounting bracket
VDO Continental I
333-035-018G

Data sheet

Speed Measuring range
0 - 8,000 RPM
Warning indication
None
Supply voltage
11 - 16 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
Tacho impulse signal
Series
VDO Cockpit International
Lens
Plastic single anti-reflective
Country of origin
Switzerland
Color
Black
IP Class front
IP64 (DIN 40050)
Installation size
52 mm - 2 1/16 Inch
Functionality
Toerental - RPM
Front ring interchangeable
Yes - Special tools required
Front ring model
Black triangle
Communication
Analogue
Category
Tachometers
Article status
Discontinued product
Successor
333-015-010K

Specific References

EAN13
410359092535
MPN
333-035-018G
