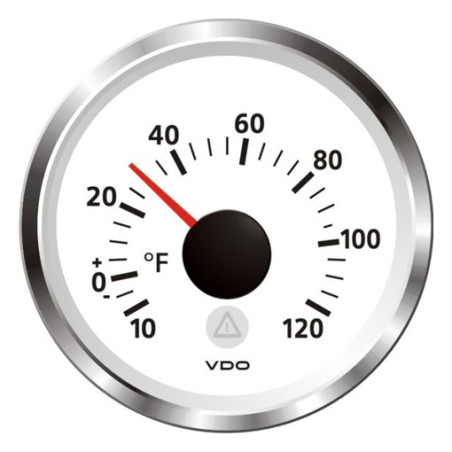

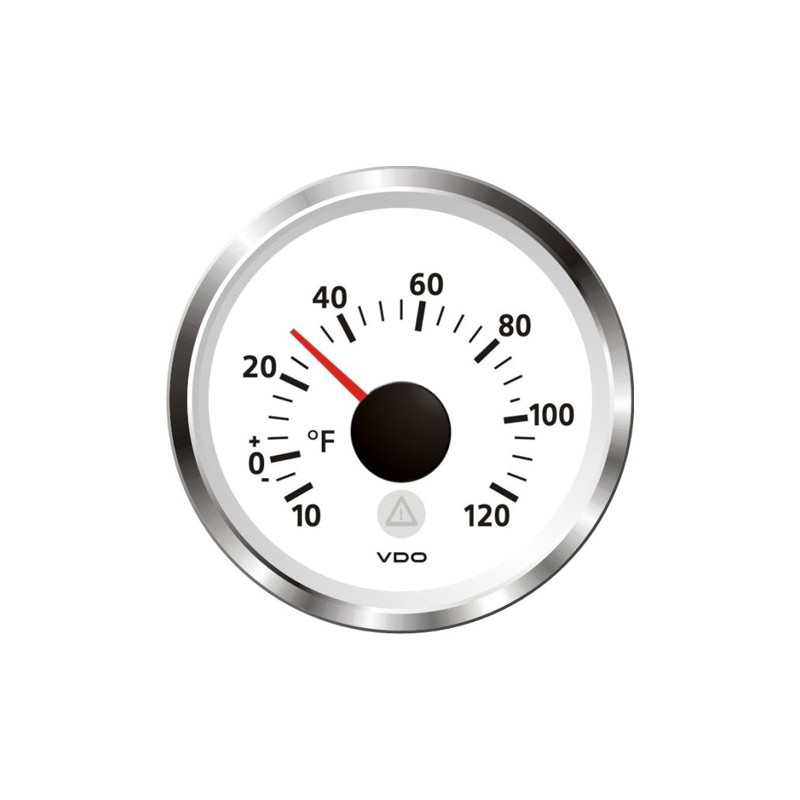

Veratron ViewLine Outdoor Temperature 120°F White 52mm
Part-number:
Veratron A2C59512321
- Color: White
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: -10°F to +120°F
- Front: Single glazed
- Retail Packaging 1 Temperature Gauge
Logistical information:
- HS Code: 90259000
- Weight: 0.50kg
Functional description outdoor temperature gauge:
Veratron ViewLine A2C59512321 specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Panel thickness with spinlock nut: | 0.5mm - 20mm |
| Panel thickness with bracket mounting: | 2mm - 15mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Outside temperature: | -10°F to +120°F |
| Input signal outside temperature gauge: | Veratron NTC Thermistor 2,000 Ohm |
| Measurement accuracy: | < 2.5 % of the full scale |
| Connection: | Hirschmann 8 pin MQS connector |
Power supply:
| Supply voltage: | 8 to 32 Volts DC |
| Power consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | 240° |
| Scale color: | White |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | Red with LED lighting |
| Alarm LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Version:
| Model: | Veratron ViewLine Standard |
| Front glass type: | Single - Anti-Glare |
| Standard front ring: | Triangle chrome (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +70°C (Front ring chrome) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine White A2C59512321 Outdoor Temperature Gauge
- Cable with Hirschmann connector 8-pin
- Front ring triangle chrome (interchangeable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
- Delivery excluding Veratron NTC Outdoor Temperature Sensor
A2C59512321
Data sheet
- Temperature Measurement Range
- -10°F - 120°F
- Warning indication
- Red LED Via plus and minus
- Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- 0°C is 1.892 ± 102 Ohm
- Series
- Veratron ViewLine Retail
- Meter scale
- Single
- Lens
- Plastic single anti-reflective
- Color
- White
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Outside temperature
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Chrome triangle
- Communication
- Analogue
- Category
- Temperature gauges
- Article status
- Expired product
Specific References
- MPN
- A2C59512321
Veratron A2C59512321
- Color: White
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: -10°F to +120°F
- Front: Single glazed
- Retail Packaging 1 Temperature Gauge
