VDO Oil Temperature Sensor 200°C – M10

Part-number:
VDO 323-801-003-002D
  • Temperature measuring range: +50°C to +200°C
  • Thread: M10 x 1
  • Resistance Rating: 482.5 - 14.3 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description cylinder temperature sensor:

VDO 323 801 003 002D Specifications:

Mechanical properties:

Temperature measurement range:+50 °C to +200 °C
Minimum - Maximum Operating Temperature:-70 °C to +250 °C
Thread:M10 x 1

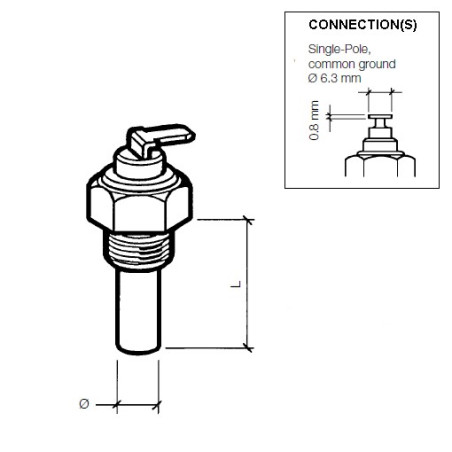

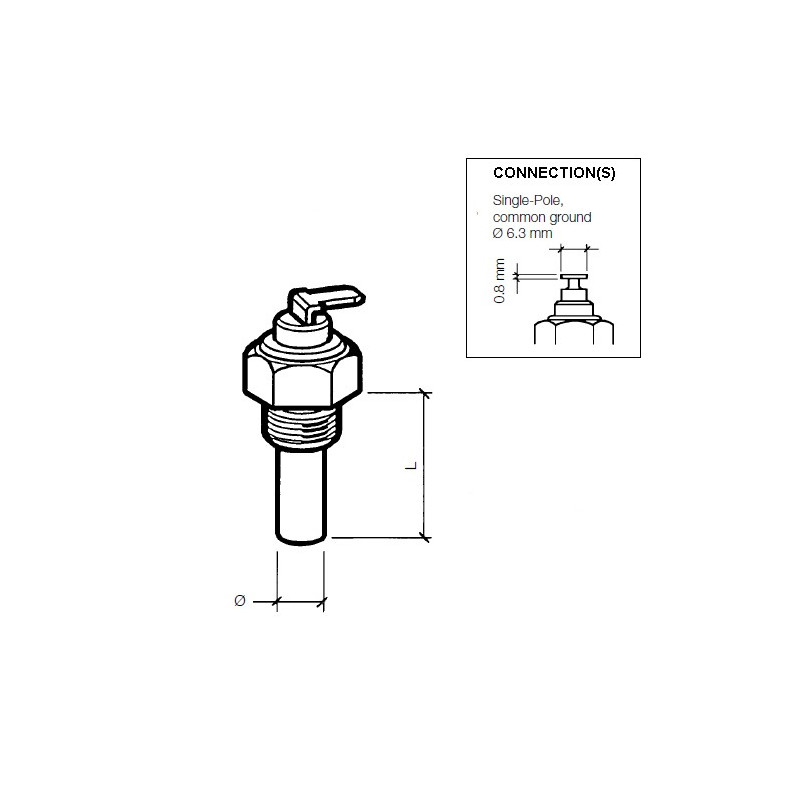

Sensor length + thread (L):22 mm
Sensor diameter:7 mm
Torque:10 Nm
Temperature medium:Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:482.5 - 14.3 Ohm
Temperature sensor output signal:1-pole min to ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection:Round plug 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 136 - 137
Type of connection:Model: C
VDO En Du Temperature Sensors Tables:VDO table: 12 - (See images)
Temperature 100 °C > Resistance:100 °C = 148.81 Ohm ± 15.16 Ohm
VDO Temperature sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 323 801 003 002D Temperature Sensor
  • On request
323-801-003-002D

Data sheet

Temperature Measurement Range
+50°C to +200°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
482.5 - 14.3 Ohm
Application
VDO Engine control
Signal analog
482.5 - 14.3 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug T-model 6.3 x 0.8 mm
Thread
M10 x 1 Male
Functionality
Cylinder temperature
Connector type
Flat plug T-model 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 801 003 002P
323/801/3/2D

Specific References

MPN
323-801-003-002D
