Continental VDO Cooling Water Sensor 120°C - 1/8-27 NPTF

Part-number:

VDO 323-801-005-001D

  • Temperature measuring range: +40 °C to +120 °C
  • Thread: 1/8-27 NPTF
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Output: Min to mass
  • No warning contact
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90259000
  • Ean Code: 4103590400130
  • Weight: 0.21kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 801 005 001D Specifications:

Mechanical properties:

Temperature measurement range: +40 °C to +120 °C
Minimum - Maximum Operating Temperature: -40 °C to +150 °C
Thread: 1/8-27 NPTF

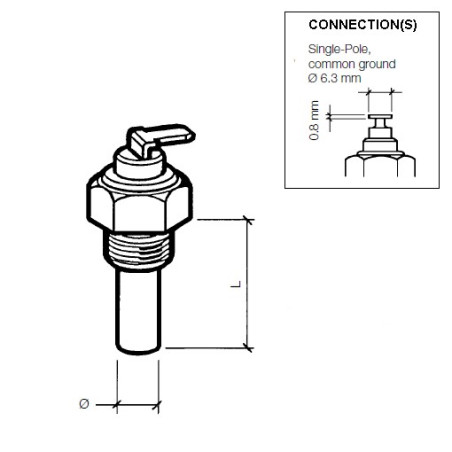

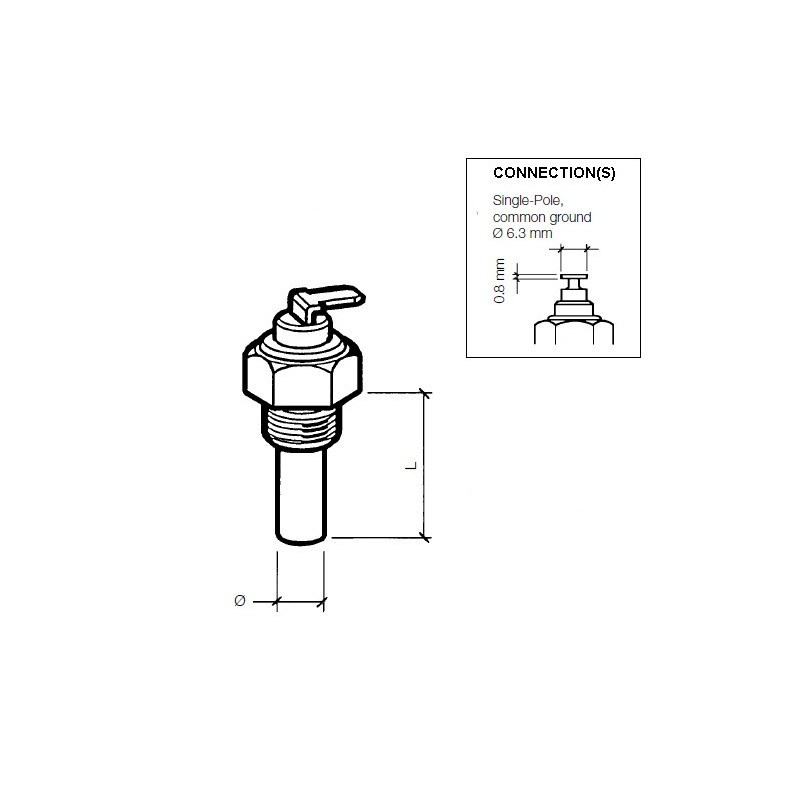

Sensor length + thread (L): 22 mm
Sensor diameter: 8.5 mm
Torque: 10 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 287.4 - 22.7 Ohm
Temperature sensor output signal: 1-pole min to ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection: Round plug 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 136 - 137
Type of connection: Model: C
VDO En Du Temperature Sensors Tables: VDO table: 1 - (See images)
Temperature 100 °C > Resistance: 100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 801 005 001D Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
323-801-005-001D

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug T-model 6.3 x 0.8 mm
Thread
1/8" - 27 NPTF Male
Functionality
Cooling water temperature
Connector type
Flat plug T-model 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Expired product
Alternate format
323 801 005 001P
323/801/5/1D

Specific References

EAN13
4103590400130
MPN
323-801-005-001D
