VDO Oil Temperature Sensor 150°C – 3/4-16 UNF-3A

Part-number:

VDO 323-801-012-011D

  • Temperature measuring range: +50°C to +150°C
  • Thread: 3/4-16 UNF-3A
  • Resistance Rating: 322.8 - 18.6 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine and transmission oil temperature sensor:

VDO 323 801 012 011D specifications:

Mechanical properties:

Temperature measurement range:+50 °C to +150 °C
Minimum - Maximum Operating Temperature:-40 °C to +180 °C
Thread:3/4-16 UNF-3A

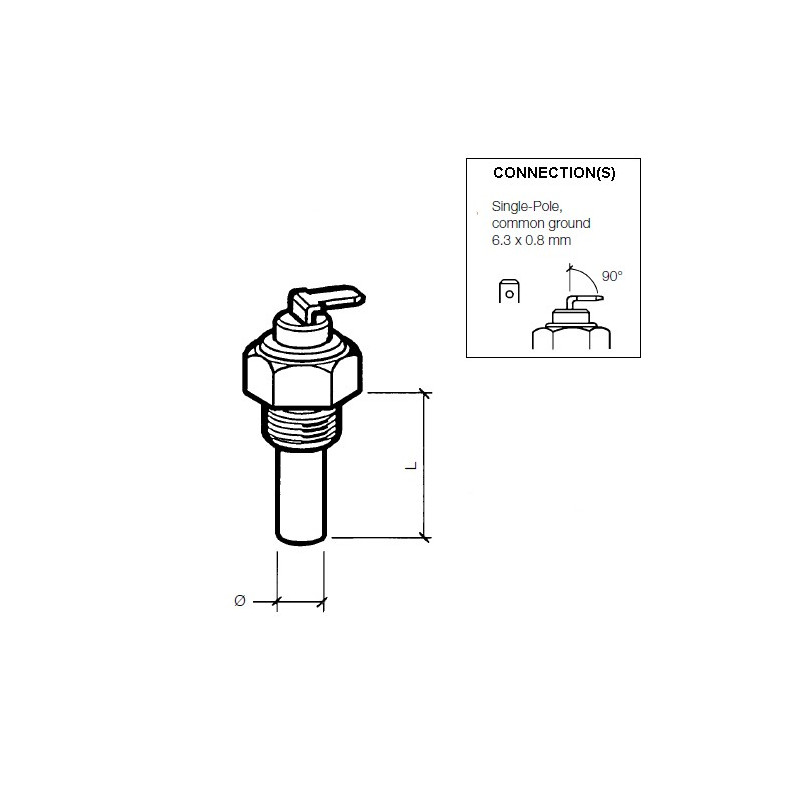

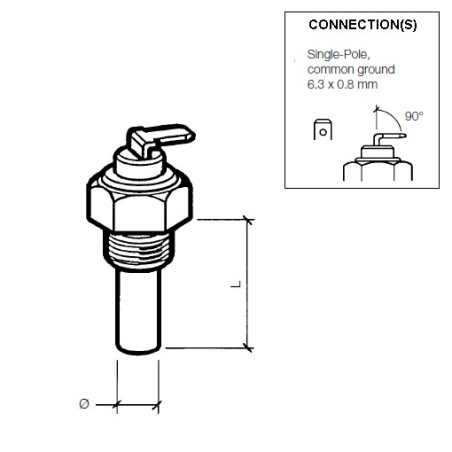

Sensor length + thread (L):15 mm
Sensor diameter:9 mm
Torque:30 Nm
Temperature medium:Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:322.8 - 18.6 Ohm
Temperature sensor output signal:1-pole min to ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection:Flat plug angled 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 136 - 137
Type of connection:Model: B
VDO En Du Temperature Sensors Tables:VDO table: 2 - (See images)
Temperature 100 °C > Resistance:100 °C = 61.92 Ohm ± 5.49 Ohm
VDO Temperature sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 323 801 012 011D Temperature Sensor
  • Not available
323-801-012-011D

Data sheet

Temperature Measurement Range
+50°C to +150°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
322.8 - 18.6 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
3/4"-16 UNF-3A Male
Functionality
Oil temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 801 012 011D
323/801/12/11D

Specific References

MPN
323-801-012-011D
