VDO Cooling Water Sensor 120°C - 5/8-18 NF-3

Part-number:
VDO 323-803-004-009D
  • Temperature measuring range: +40 °C to +120 °C
  • Thread: 5/8-18 NF-3
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 803 004 009D Specifications:

Mechanical properties:

Temperature measurement range:+40 °C to +120 °C
Minimum - Maximum Operating Temperature:-40 °C to +150 °C
Thread:5/8-18 NF-3
Sensor length + thread (L):40 mm
Sensor diameter:10.8 mm
Torque:20 Nm
Temperature medium:Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:287.4 - 22.7 Ohm
Temperature sensor output signal:1-pole min to ground
Warning contact:105 ± 3
Load warning contact1.2 to 3 Watt induction-free
Warning contact propertiesContact closes with rising temperature
Temperature sensor connection:Flat plug straight T-model 6.3 x 0.8 mm
Warning contact connection:Flat plug straight T-model 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 142 - 143
Type of connection:Model: B

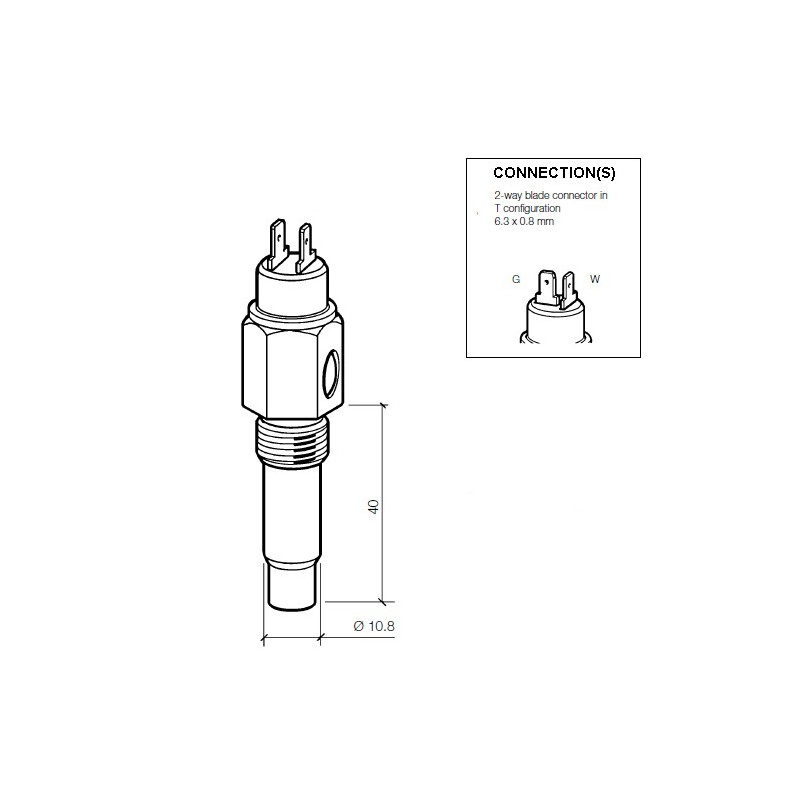

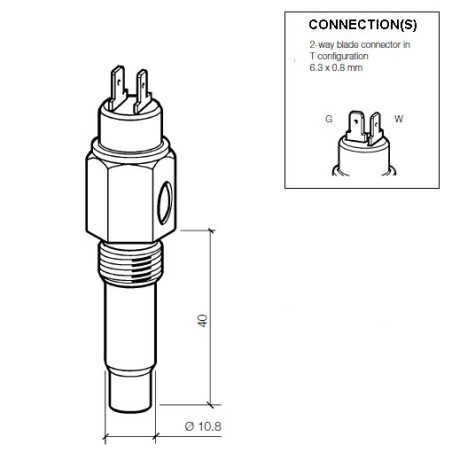

VDO And Du Temperature Sensors Tables:VDO table: 1 - (See images)
Temperature 100 °C > Resistance:100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 323 803 004 009D Temperature Sensor
  • On request
323-803-004-009D

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact connector
Flat plug 6.3 x 0.8 mm
Warning contact
105 ± 3
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
5/8" - 18 NF-3 Male
Functionality
Cooling water temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 803 004 009P
323/803/4/9D

Specific References

MPN
323-803-004-009D
