VDO Cooling Water Sensor 120°C - 1/2-14 NPTF

Part-number:

VDO 323-805-001-004K

  • Temperature measuring range: +40 °C to +120 °C
  • Thread: 1/2-14 NPTF
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Output: Isolated from ground
  • Replacement product on request
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 805 001 004K Specifications:

Mechanical properties:

Temperature measurement range: +40 °C to +120 °C
Minimum - Maximum Operating Temperature: -40 °C to +150 °C
Thread: 1/2-14 NPTF

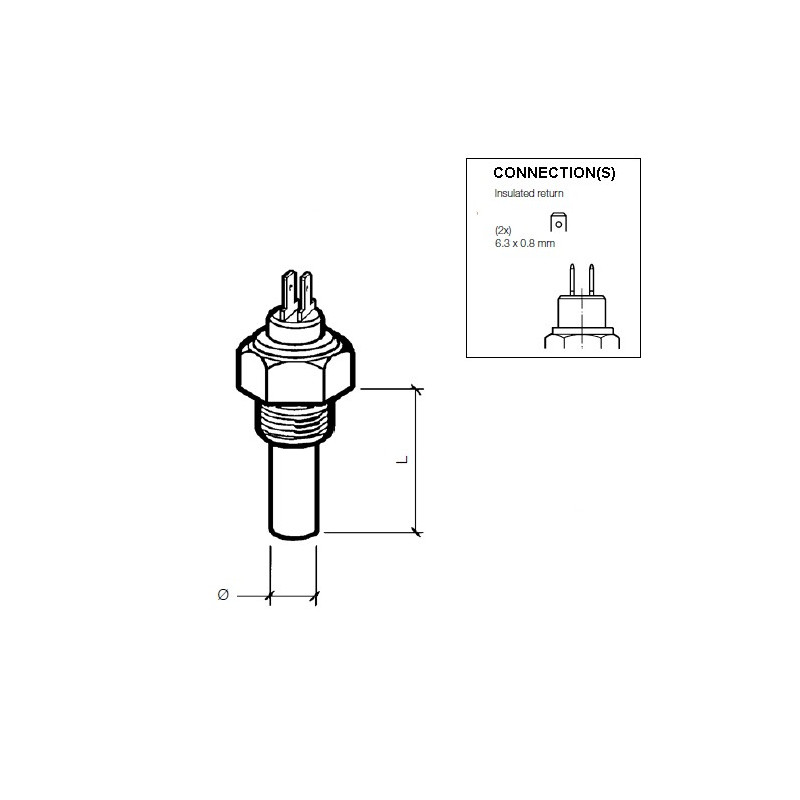

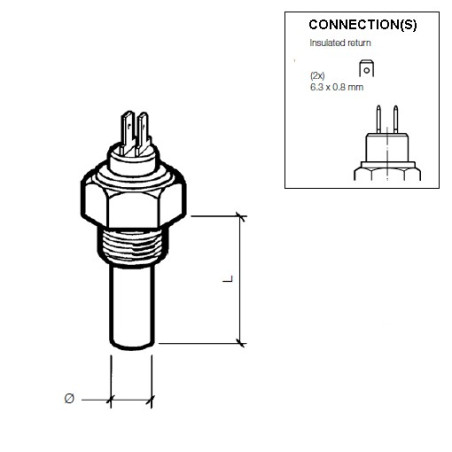

Sensor length + thread (L): 29 mm
Sensor diameter: 11 mm
Torque: 30 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 287.4 - 22.7 Ohm
Temperature sensor output signal: 2-pole insulated from ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection: Flat plug straight 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 138 - 139
Type of connection: Model: G
VDO En Du Temperature Sensors Tables: VDO table: 1 - (See images)
Temperature 100 °C > Resistance: 100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 323 805 001 004K Temperature Sensor
  • On request
323-805-001-004K

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Isolated from mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
1/2" - 14 NPTF Male
Functionality
Cooling water temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 805 001 004K
323/805/1/4K

Specific References

MPN
323-805-001-004K
