VDO Cooling Water Sensor 130°C - M14
Part-number:
VDO 323-805-034-002B
- Temperature measuring range: +40 °C to +130 °C
- Thread: M14 x 1.5
- Resistance Rating: 1392.3 - 157.2 Ohm
- Output: Isolated from ground
- No warning contact
Logistical information:
- HS Code: 90259000
- Ean Code: 4103590949417
- Weight: 0.02kg
Technical description cooling system temperature sensor:
VDO 323 805 034 002B Specifications:
Mechanical properties:
| Temperature measurement range: | +40 °C to +130 °C |
| Minimum - Maximum Operating Temperature: | -30 °C to +150 °C |
| Thread: | M14 x 1.5 |

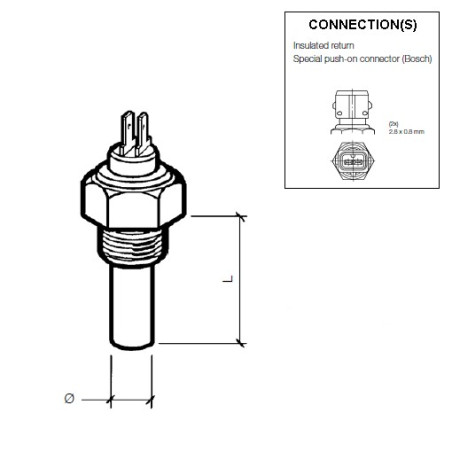

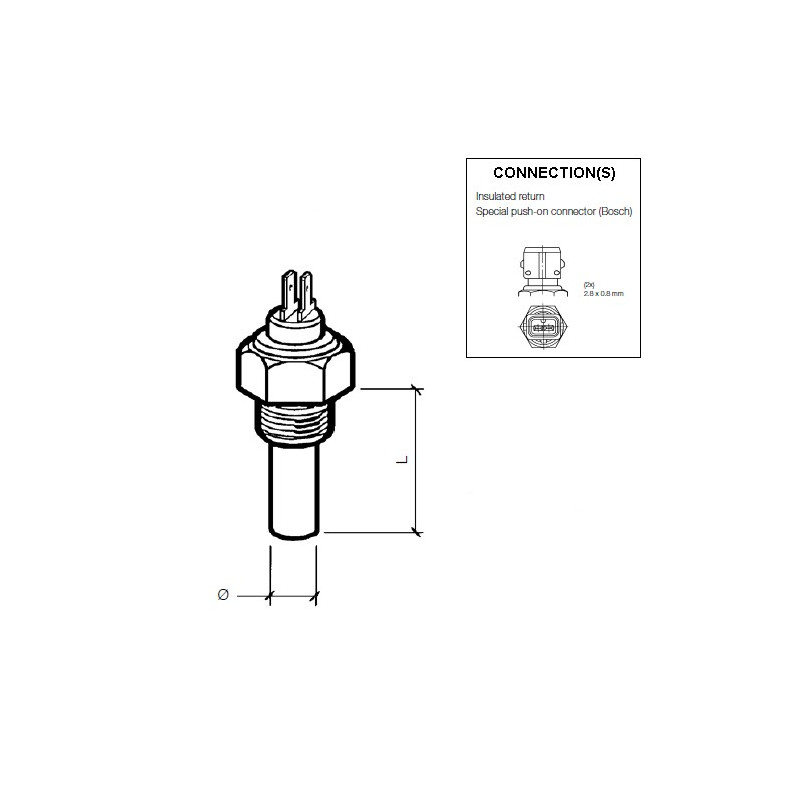

| Sensor length + thread (L): | 29 mm |
| Sensor diameter: | 7.5 mm |
| Torque: | 20 Nm |
| Temperature medium: | Oil - petroleum - diesel - gasoline - air - water - coolant |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 100 °C = 330.17 Ohm |
| Temperature sensor output signal: | 2-pole insulated from ground |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Temperature sensor connection: | Bosch push-on connector 2.8x0.8mm |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 138 - 139 |
| Type of connection: | Model: H |
| VDO En Du Temperature Sensors Tables: | VDO table: 18 - (See images) |
| Temperature 100 °C > Resistance: | 100 °C = 330.17 Ohm ± 12.78 Ohm |
| VDO Temperature sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 323 805 034 002B Temperature Sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
323-805-034-002B
Data sheet
- Temperature Measurement Range
- +40°C to +130°C
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 1392.3 - 157.2 Ohm
- Application
- VDO Engine control
- Signal analog
- 1392.3 - 157.2 Ohm
- Sensor signal
- Isolated from mass
- Sensor connector
- Bosch push-on connector 2.8x0.8mm
- Thread
- M14 x 1.5 Male
- Country of origin
- Czech Republic
- Functionality
- Cooling water temperature
- Connector type
- Bosch push-on connector 2.8x0.8mm
- Communication
- Analogue
- Category
- Temperature sensors
- Article status
- Discontinued product
- Alternate format
- 323 805 034 002B
323/805/34/2B
Specific References
- EAN13
- 4103590949417
- MPN
- 323-805-034-002B
VDO 323-805-034-002B
- Temperature measuring range: +40 °C to +130 °C
- Thread: M14 x 1.5
- Resistance Rating: 1392.3 - 157.2 Ohm
- Output: Isolated from ground
- No warning contact
