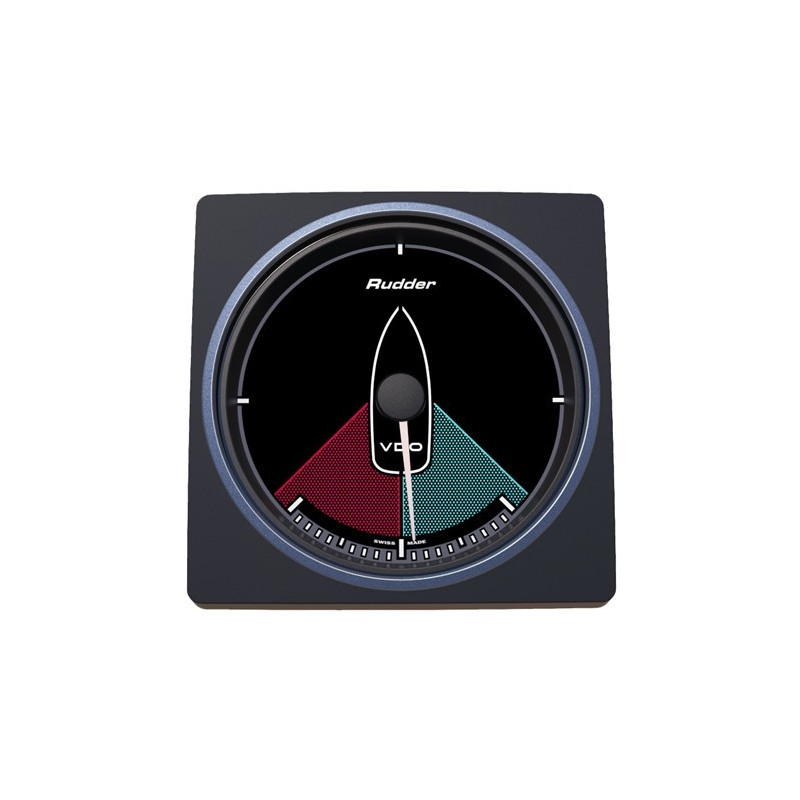

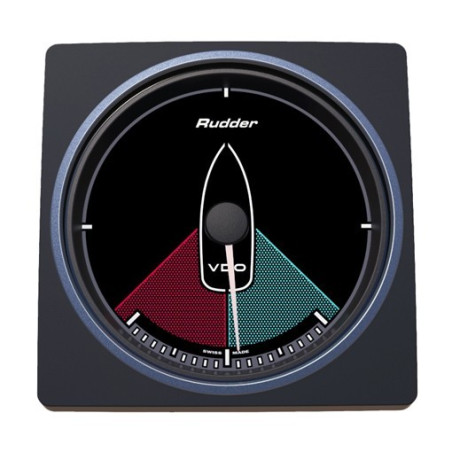

Veratron AcquaLink Rudder position indicator black 110mm
€343.42
(tax incl.)
€283.82 (VAT Excl.)
Part-number:
Veratron A2C59501912
- Color: Black - Silver
- Panel hole diameter: 110 mm - 4 3/8"
- Measuring range: -45° to +45° rudder angle
- Front: Mineral glass - Anti-fog
- Power supply: Via Veratron interface
- Connect to: Veratron EasyLink master
Logistical information:
- HS Code: 90148000
- Ean Code: 7640178720244
- Weight: 0.71kg
A2C59501912
Data sheet
- Measuring range
- 45° - 0 - 45°
- Supply voltage
- 12 - 24 V DC Via Easylink II
- Packaging
- 1 Piece Retail Veratron AcquaLink
- Application
- VDO Navigation
- Series
- Veratron AcquaLink
- Meter scale
- Single
- Lens
- Mineral glass - Anti-fog
- Color
- Black - Aluminum
- IP Class front
- IP67 (IEC 60529)
- Installation size
- 110 mm - 4 3/8 Inch
- Functionality
- Rudder position
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black square
- Connector type
- M12 8-pin VDO Bus connector (2x)
- Category
- Rudder position indicators
- Article status
- Available to order
Specific References
- EAN13
- 7640178720244
- MPN
- A2C59501912
Veratron A2C59501912
- Color: Black - Silver
- Panel hole diameter: 110 mm - 4 3/8"
- Measuring range: -45° to +45° rudder angle
- Front: Mineral glass - Anti-fog
- Power supply: Via Veratron interface
- Connect to: Veratron EasyLink master
