  • A2C1351990001 Veratron OceanLink GPS - SOG Speedometer 0–70 kn Black 85 mm

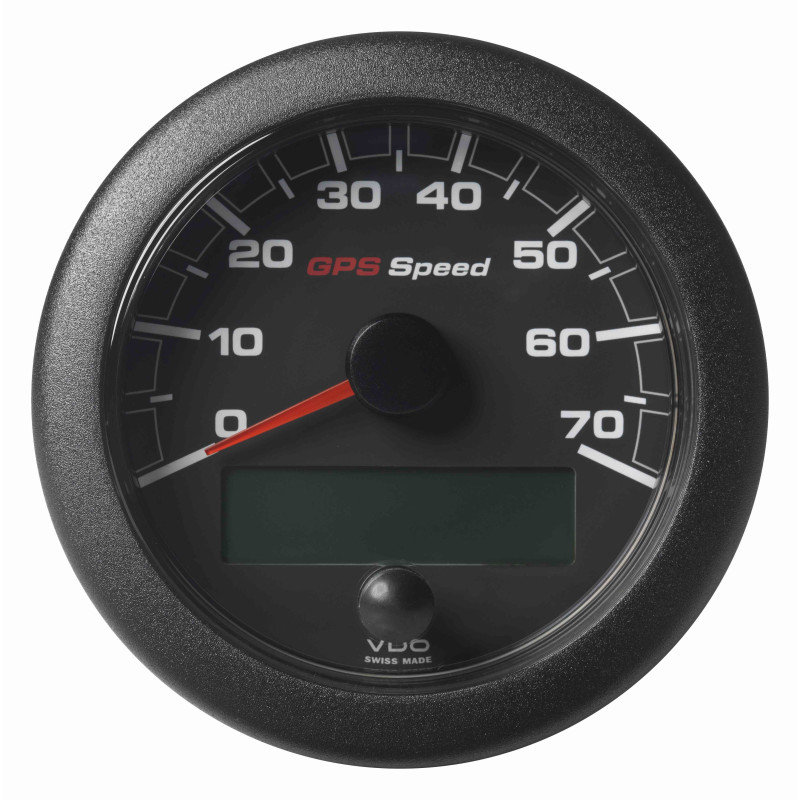

Veratron OceanLink GPS - SOG Speedometer 0–70 kn Black 85 mm

€286.52 (tax incl.)

€236.79 (VAT Excl.)

Part-number:

Veratron A2C1351990001

  • Color: Black
  • Panel hole diameter: 85 mm
  • Measuring range: 0–70 Knots/km/h/mph
  • Front: Double glazing - Anti-fog
  • Retail Packing 1 GPS Speedometer
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90292010
  • Weight: 0.65kg
Quantity

Functional description ViewLine GPS Speedometer:

Veratron ViewLine A2C59501781 Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 110 mm - 4 3/8 Inch and 126 mm - 5 Inch
Installation depth: 50 mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm (Optional)
Flushmount mounting: Optional kit A2C59510864

Functional:

Analog speed measurement range: 0–70 Knots - Km/h - Mph Adjustable
Display functions (Sensor dependent): Course over ground
UTC time
Trip distance
Trip time
Speed alarm
Brightness setting
GPS Signal strength
Warning light
Input signal GPS speedometer: NMEA 2000
Suitable sensors: Built-in GPS Antenna
Measurement accuracy: < 2.5 % of the full scale
Connection: Hirschmann 8 pin MQS connector

Power supply:

Supply voltage: 8 to 16 Volts DC
Power consumption: < 175 mA including warning LED
Reverse polarity protection: Yes - 5 minutes
Short-circuit resistance: Yes - 1 minute

Scale & pointer:

Graduation: 240°
Scale color: Black
Scale lighting: Amber LED backlight 605nm
Pointer: White with LED lighting
Alarm LED: Red (632nm)
Programming: Veratron USB software kit

Version:

Model: Veratron ViewLine Marine
Front glass type: Double - Anti-fog - Anti-glare
Standard front ring: Round Black (Interchangeable)

Degree of protection and certification:

Front protection class: IP67 (IEC 60529)
Back protection class IP52
Relative humidity: Maximum 95%
Operating Temperature: -30°C to +80°C (Plastic front ring)
CE Certification: Yes
DNV GL Certification: Yes
Vibration test 25G - 6ms - 1Hz
Shock test: 100G - 11ms
Drop test: 1 Meter - 3x
Fire safety: UL94-VD

Retail packaging:

  • Veratron ViewLine Black A2C59501781 GPS Speedometer
  • GPS Cable
  • Front ring round black (replaceable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Includes 2 Push Buttons 13.6 mm IP67 A2C59512684
Veratron VDO
A2C1351990001

Data sheet

Speed Measurement Range
0 – 70 Kn - Kmh - Mph
Supply voltage
12 - 24 Volt DC
Packaging
VDO Instrument retail
Application
VDO Navigation
Series
Veratron OceanLink II
Lens
Plastic double anti-fog
Color
Black
IP Class front
IP67 (IEC 60529)
Input
NMEA-2000
Installation size
85 mm - 3 3/8 Inch
Functionality
GPS Speedometers
Front ring interchangeable
Yes - Clip-on
Front ring model
Black round
Communication
NMEA 2000 - Veratron NavBox
Category
Navigation instruments
Article status
Available to order

Specific References

MPN
A2C1351990001
