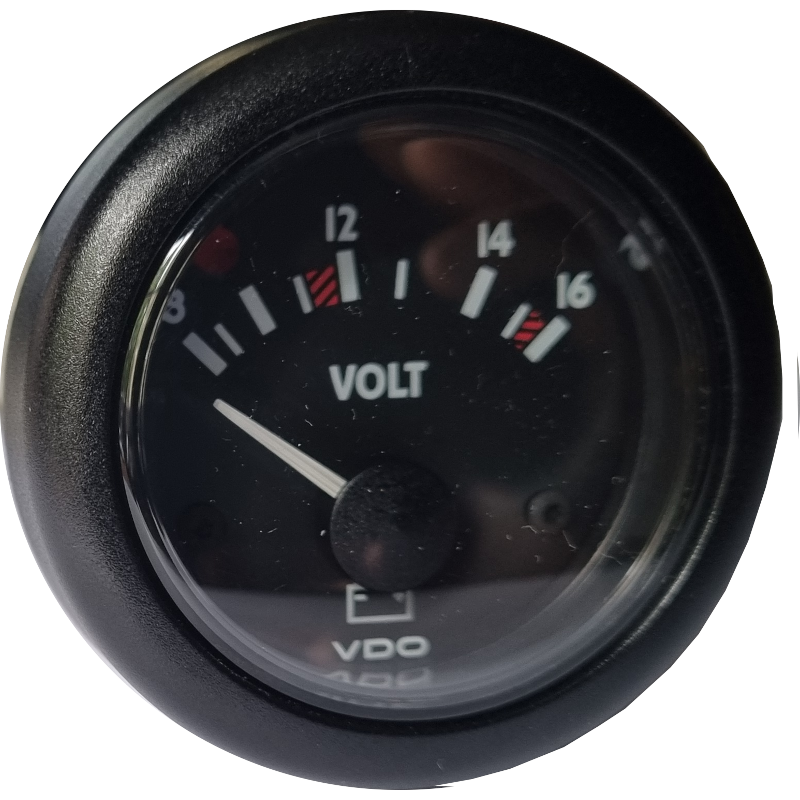

VDO OceanLine Voltmeter 8-16V Black 52mm
Part-number:
Veratron N02-410-812
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 8 to 16V DC
- Front: Double glazing - Anti-fog
- Retail packaging 1 Voltmeter
Logistical information:
- HS Code: 90303900
- Weight: 0.25kg
VDO OceanLine Black N02-410-812 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 60 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
Functionality:
| Voltmeter measurement range: | 8 to 16V DC |
| Signal input voltmeter: | 0 to 16V DC Battery power |
| Accuracy: | < 3.6 angular degrees |
| Connection: | AMP 6.3 |
Power supply:
| Operating voltage: | 8 to 16 Volt DC |
| Current consumption: | < 140 mA |
| Reverse polarity protection: | No |
| Short circuit protection: | No |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | White backlight 605nm |
| Pointer: | White |
| Warning LED: | Red (632nm) |
Design:
| Model: | VDO OceanLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- VDO OceanwLine Black N02-410-812 Voltmeter
- Spinlock nut
- Bezel round black (Interchangeable)
N02-410-812
Data sheet
- Voltage Measuring Range
- 08 - 16V DC
- Warning indication
- Red LED Via plus and minus
- Supply voltage
- 8 - 16 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- 0 - 16V DC
- Series
- VDO Marine OceanLine
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- 12 Volt Battery condition
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black round
- Communication
- Analogue
- Category
- Voltmeters
- Article status
- Discontinued product
Specific References
- MPN
- N02-410-812
