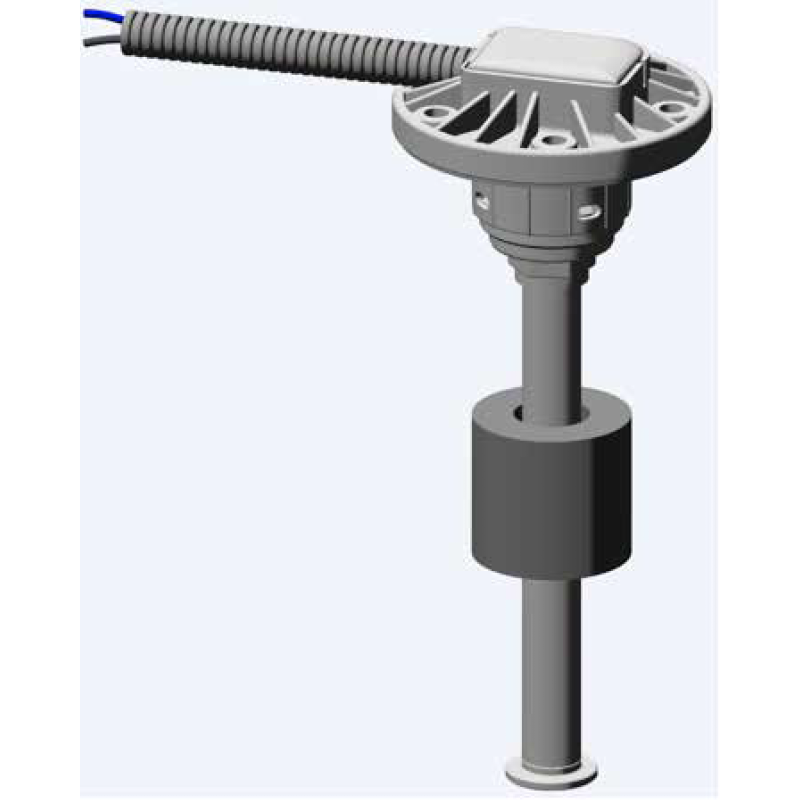

Continental VDO Ø54mm Stainless Steel 316 Pipe Float Contactless 150 mm - Empty-Full 90-1 Ohm

€90.21 (tax incl.)

€74.55 (VAT Excl.)

Part-number:

2910002233700

  • Tubular sensor stainless steel
  • Tube length: 150mm - Ø 40mm
  • 5-hole SAE Flange 54mm PA66 GF30
  • Resistance empty-full: 90-1 Ohm
  • Suitable for water and fuel
  • Package 1 Tubular sensor L = 150mm
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590696458
  • Weight: 0.24kg
Quantity

Description Ø54mm Tubular fuel sensor:

VDO 2910002233700 Full technical specifications:

Mechanical features:

Tube length: 150 mm ± 2.0 mm
Minimum tank depth: 150mm ± 2.0mm + 4.0mm
Support spring: None
Mounting flange: 5-Hole SAE 54 mm
Operating temperature: -25 °C to +65 °C
Fuel: Oil - petroleum - diesel - gasoline

Electrical features:

Operating voltage: 6 - 24 V DC
Resistance empty: 90 Ohm
Resistance full: 1.0 Ohms
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch

Datasheets and Tables:

VDO 2010 EN Tubular Standard 54mm: Page 1 - 5

Retail package:

  • VDO 2910000847500 Standard 54 mm metal tubular fuel level sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
2910002233700

Data sheet

Warning contact
None
Supply voltage
6 - 48 Volts
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
150 mm to 200 mm
Signal analog
Empty - Full : 90 - 1 Ohm
Sensor type
Tube sensors 54mm stainless steel
Sensor signal
Isolated from mass
Country of origin
Turkey*
Installation size
54mm SAE 5-Hole Flange
Connector type
None
Communication
Analogue
Category
Fuel level sensors
Article status
Available to order

Specific References

EAN13
4103590696458
MPN
2910002233700
