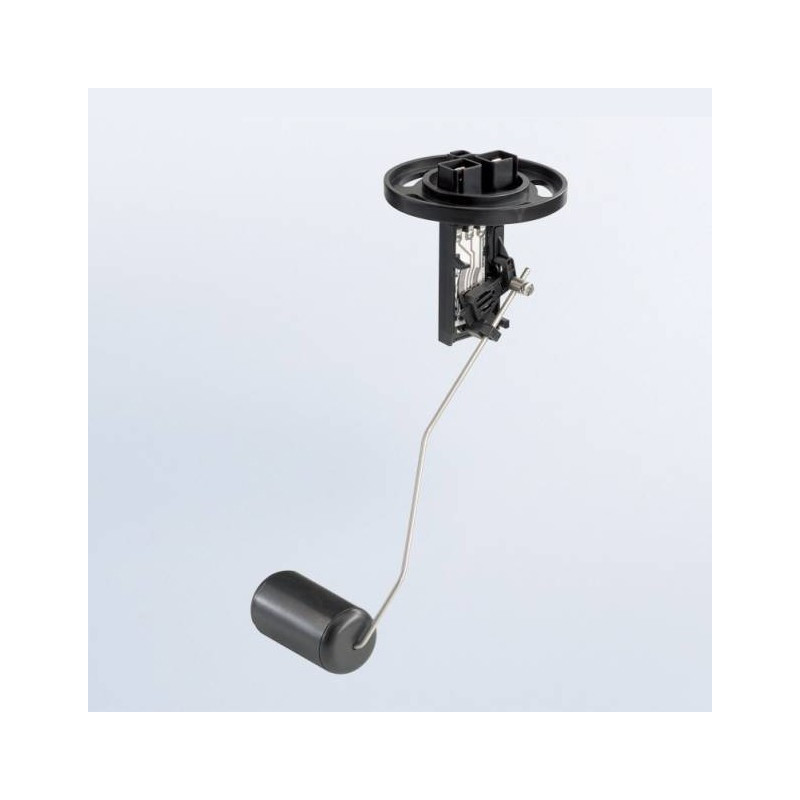

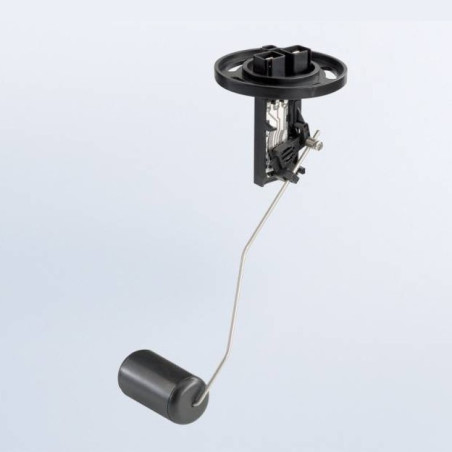

10 Pieces VDO ALAS1 Fuel Siphon Float 240-33 Ohm
€611.29
(tax incl.)
€505.20 (VAT Excl.)
Part-number:
VDO A2C59510169
- ALAS1 Fuel lever arm sender
- Tank depth: 145 - 400 mm (Adjustable)
- 5-Hole SAE Flange 54 mm
- Resistance empty-full: 240.0 - 33.5 Ohm
- OEM package 10 Lever arm fuel level sensors
Logistical information:
- HS Code: 90261089
- Ean Code: 4103590692481
- Weight: 0.34kg
Description ALAS1 Fuel lever-arm sender:
VDO A2C 595 101 69 Full technical specifications:
Mechanical features:
| Tank depth: | 145 mm - 400 mm |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -40 °C to +70 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 240 Ohms |
| Resistance full: | 33.5 Ohms |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
Datasheets and Tables:
| VDO 2012 EN-DE Lever arm sender: | Page 8 |
OEM package:
- 10 Pieces VDO A2C53170770 Lever arm fuel level sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
A2C59510169
Data sheet
- Measuring range
- 240 - 33.5 Ohm
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- Yes
- Packaging
- VDO Sensor OEM bulk packaging
- Application
- VDO Level measurement
- Tank depth range
- 145 mm to 400 mm
- Signal analog
- Empty - Full : 240 - 33 Ohm
- Sensor type
- Fuel siphon sensors ALAS1
- Sensor signal
- Isolated from mass
- Country of origin
- Malaysia
- Installation size
- 54mm SAE 5-Hole Flange
- Functionality
- Fuel level and pump
- Connector type
- Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Available to order
Specific References
- EAN13
- 4103590692481
- MPN
- A2C59510169
