VDO Pressure Sensor 0-5 Bar - 1/8-27 NPTF
Part-number:
VDO 360-081-039-015C
- Pressure measuring range: 0 - 5 Bar
- Thread: 1/8 - 27 NPTF
- Resistance value: 10 - 184 Ohm
- Output: Isolated from ground
- Warning contact: 0.25 Bar ± 0.15 Bar
Logistical information:
- HS Code: 90269000
- Ean Code: 4103590691439
- Weight: 0.13kg
Technical description engine oil pressure sensor:
VDO 360 081 039 015C Specifications:
Mechanical properties:
| Pressure measurement range: | 0 - 5 Bar 0 - 72.5 PSI 0 - 500 KPa |
| Maximum pressure: | 30 Bar for 2 seconds |
| Thread: | 1/8 - 27 NPTF |

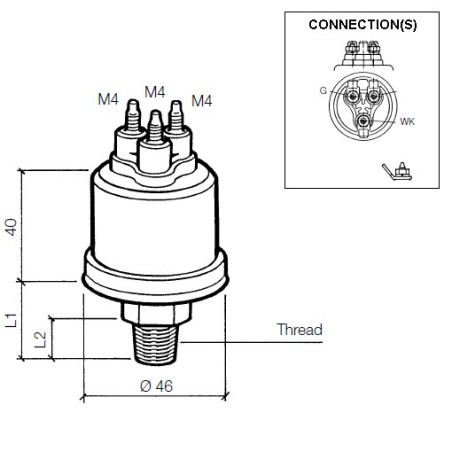

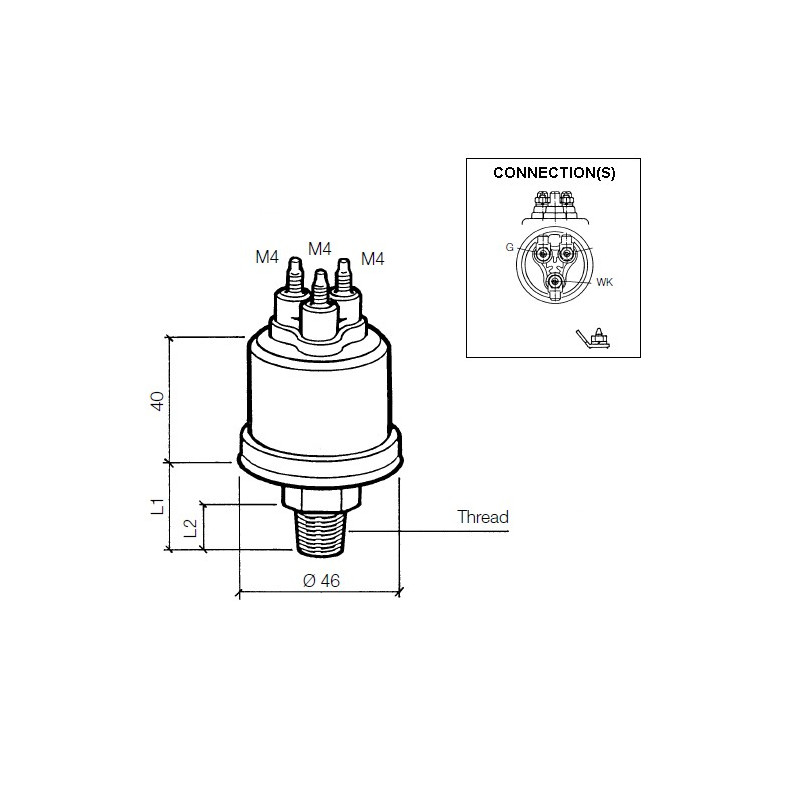

| Thread + nut length (L1): | 19.5 mm |
| Thread length (L2): | 11 mm |
| Torque: | 30 Nm |
| Operating Temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - petroleum - diesel - gasoline - air |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 10 - 184 Ohms |
| Pressure sensor output signal: | 2-pole insulated from ground |
| Warning contact: | 0.25 Bar ± 0.15 Bar |
| Load warning contact | Maximum 5 Watt induction-free |
| Warning contact properties | Contact closes when pressure drops |
| Pressure sensor connection: | M4 Flat plug 6.3 x 0.8 mm 50° |
| Warning contact connection: | M4 Flat plug 6.3 x 0.8 mm 50° |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 128 - 129 |
| Type of connection: | Model: B |
| VDO En Du Pressure Sensors Tables: | VDO Datasheet Table 3 |
| VDO Pressure sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 360 081 039 015C Pressure Sensor
- VDO Sensors are - unless otherwise stated - delivered without connection material
360-081-039-015C
Data sheet
- Pressure Measurement Range
- 0 - 5 Bar
- Warning contact connector
- M4 Flat plug 6.3 x 0.8 mm
- Warning contact
- 0.25 Bar ± 0.15 Bar
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 10 - 184 Ohms
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Sensor signal
- Isolated from mass
- Sensor connector
- M4 Flat plug 6.3 x 0.8 mm
- Thread
- 1/8" - 27 NPTF Male
- Country of origin
- Germany
- Functionality
- Engine oil pressure
- Connector type
- M4 Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Pressure sensors
- Article status
- Expired product
- Alternate format
- 360 081 039 015C
360/81/39/15C
Specific References
- EAN13
- 4103590691439
- MPN
- 360-081-039-015C
VDO 360-081-039-015C
- Pressure measuring range: 0 - 5 Bar
- Thread: 1/8 - 27 NPTF
- Resistance value: 10 - 184 Ohm
- Output: Isolated from ground
- Warning contact: 0.25 Bar ± 0.15 Bar
