  • 230-213-004-002C VDO Pressure switch 12.50 Bar - M14

VDO Pressure Switch 12.50 Bar - M14

Part-number:
VDO 230-213-004-002C
  • Pressure switching point: 12.50 Bar ± 0.40 Bar
  • Thread: M14 x 1.5
  • Contact closes when pressure drops
  • Output: Isolated from ground
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description oil pressure switch:

VDO 230 213 004 002C Specifications:

Mechanical properties:

Pressure switching point:12.50 Bar ± 0.40 Bar
Pressure measurement range:0 - 10 Bar
Maximum pressure:30 Bar for 2 seconds
Thread:M14 x 1.5

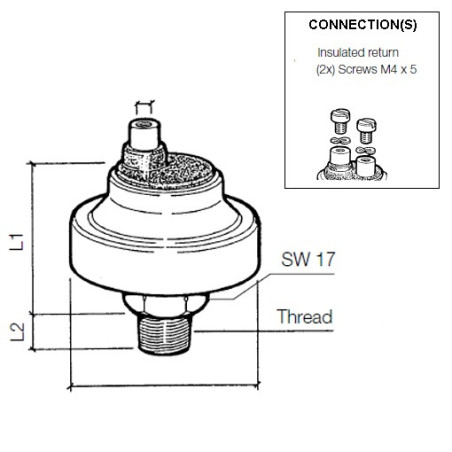

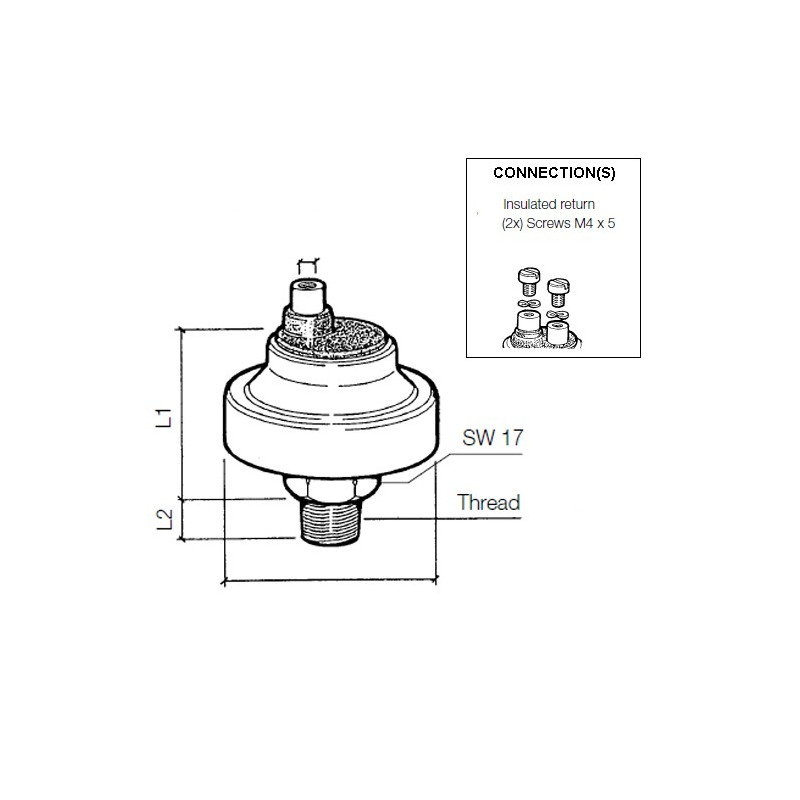

Thread + nut length (L1):39 mm
Thread length (L2):11 mm
Torque:60 Nm
Operating Temperature:–25 °C to +120 °C
Housing:Round 45 mm with closed contact compartment
Pressure medium:Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage:6 - 24 V DC
Switch function:Contact closes at pressure > 12.50 Bar
Pressure switch output signal:2-pole insulated from ground
Contact response:Slow
Switching capacity:Maximum 5 Watt non-inductive
Pressure switch connection:M4 Screw (2x)

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 133 - 134
Type of connection:Model: 2D6
VDO Pressure switches are used in, among others:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 230 213 004 002C Pressure Switch
  • On request
230-213-004-002C

Data sheet

Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
Contact closes when pressure drops
Sensor signal
Isolated from mass
Thread
M14 x 1.5 Male
Switch point
12.50 Bar
Category
Pressure switches
Article status
Expired product
Alternate format
230 213 004 002C
230/213/4/2C

Specific References

MPN
230-213-004-002C
