340-216-005-001C VDO Square wave speed - speed sensor - M18
search
  • 340-216-005-001C VDO Square wave speed - speed sensor - M18

VDO Square wave speed - speed sensor - M18

€196.15 (tax incl.)

€162.11 (VAT Excl.)

Part-number:

VDO 340-216-005-001C

  • Sender type: Blocking Oscillator - 400Hz
  • Thread: M18 x 1.5 Male
  • Power supply: 8 - 15V Stabilized
  • Sensor signal: 2-pole insulated return
  • Connector: Bayonet 4-pole 2.8mm
Logistical information:
Limited availability of run-out itemClick here for detailed information.
  • HS Code: 90318080
  • Ean Code: 4103590690364
  • Weight: 0.12kg
Quantity

Description Blocking Oscillator speedo and tacho sender:

VDO 340 216 005 001C Full technical specifications:

Mechanical features:

Thread: M18 x 1.5 Male
Maximum frequency: 400 Hz = 24,000 Pulses per minute
Operating temperature: -40°C to +130°C
Sender length overall (L2): 133 ± 1 mm
Sender element length including thread (L1): 90.2 mm
Sender diameter: 15.5 mm
Distance sender - pulse generator: 0.3 mm to 1.4 mm
Duty cycle: (t on + t off) / t on = 1.43 to 3.33

Electrical features:

Operating voltage: 8 - 15V DC Stabilized
Signal output: Insulated return
Connector: Connector 4-pole bayonet contacts 3 x 0.8 mm
Current consumption: 12 mA

Datasheets and Tables:

2010 EU VDO Sensors Catalogue Download Page 56 - 57

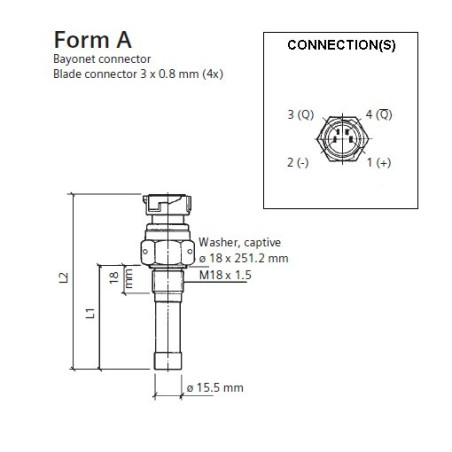

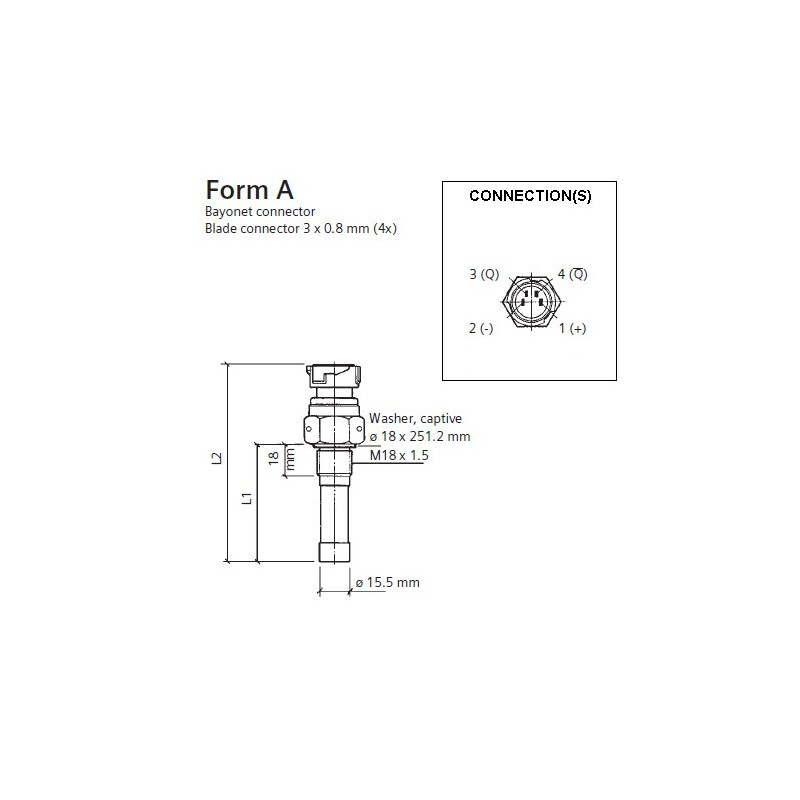

Image: A

Retail package:

  • VDO 340-216-005-001C Blocking Oscillator tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
340-216-005-001C

Data sheet

Measuring range
0 - 400 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Square Wave
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Country of origin
Czech Republic
Functionality
Square wave sensors
Connector type
4-pole bayonet
Category
Square wave sensors
Article status
Limited availability of run-out item
Alternate format
340 216 005 001C
340/216/5/1C

Specific References

EAN13
4103590690364
MPN
340-216-005-001C
