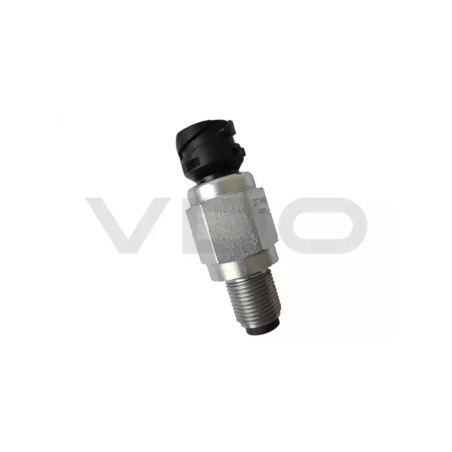

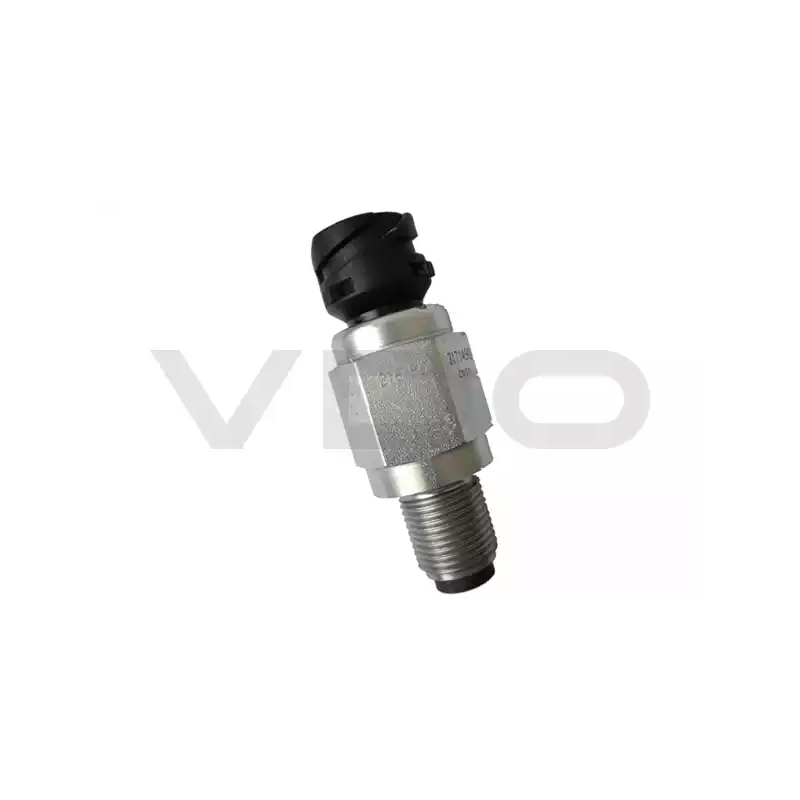

VDO Blocking oscillator tacho - speed sender - M18

VDO Blocking oscillator tacho - speed sender - M18

Part-number:

VDO 340-216-008-010C

  • Sender type: Blocking Oscillator - 400Hz
  • Thread: M18 x 1.5 Male
  • Power supply: 6.3 - 8V Stabilized
  • Sensor signal: 2-pole insulated return
  • Connector: 4-pole special OEM
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90299000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Description Blocking Oscillator speedo and tacho sender:

VDO 340 216 008 010C Full technical specifications:

Mechanical features:

Thread: M18 x 1.5 Male
Maximum frequency: 400 Hz = 24.000 Pulsen per minuut
Operating temperature: -40°C to +130°C
Sender length overall (L2): 78.6 mm ± 1 mm
Sender element length including thread (L1): 25 mm
Distance sender - pulse generator: 0.3 mm to 1.4 mm
Duty cycle: (t on + t off) / t on = 1.43 to 3.33

Electrical features:

Operating voltage: 6.3 - 8V DC Stabilized
Signal output: Insulated return
Connector: Connector 4-pole special
Current consumption: 12 mA

Datasheets and Tables:

2010 EU VDO Sensors Catalogue Download Page 56 - 57
Image: Not specified by VDO

VDO Sender 340-216-008-010C replaces manufacturer OEM number:

MERCEDES-BENZ Part number: 013 542 62 17

Retail package:

  • VDO 340-216-008-010C Blocking Oscillator tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
340-216-008-010C

Data sheet

Measurement range
0 - 400 Hz
Packaging
VDO Sensor retail package
Application
VDO Engine monitoring
Sensor type
RPM Blocking oscillator
Sensor signal
Insulated return
Thread
M18 x 1.5 Male
Functionality
Blocking oscillator sensor
Connector type
4-polig Special
Category
Blocking oscillator sensors
Article status
Discontinued product
Alternative notation
340 216 008 010C
340/216/8/10C

Specific References

ISBN
90299000
MPN
340-216-008-010C
