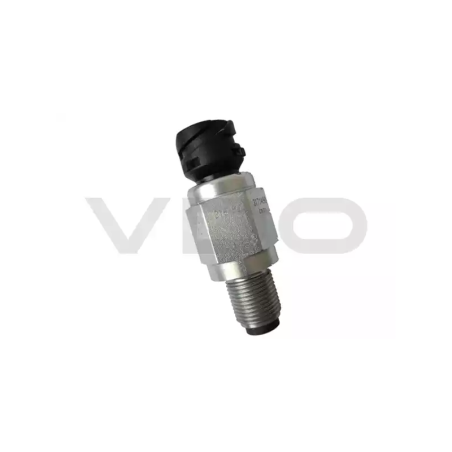

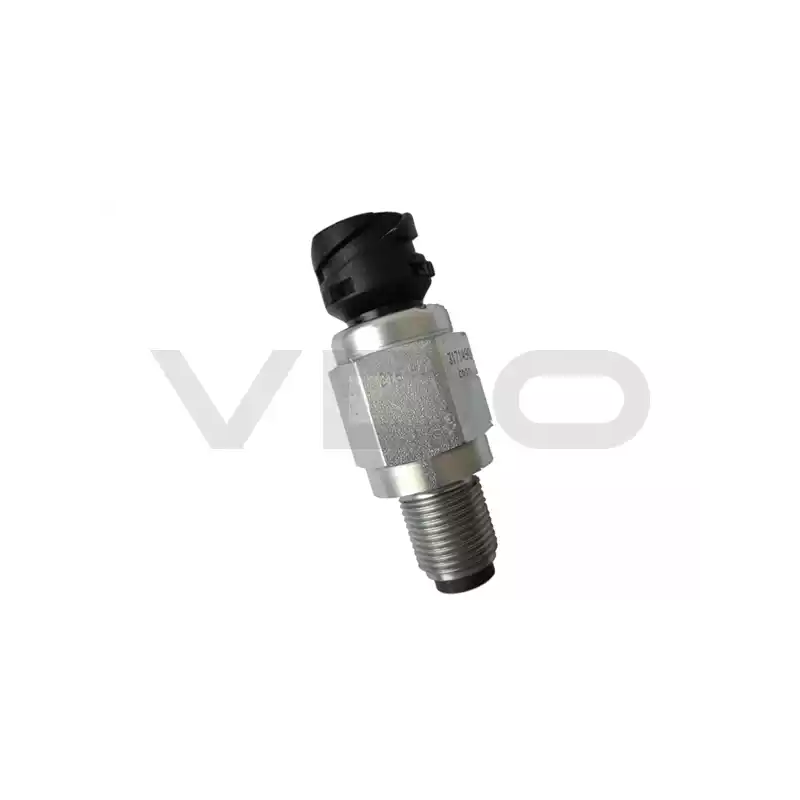

  • VDO (Genuine) VDO Blocking oscillator tacho -

VDO Square wave speed - speed sensor - M18

€151.67 (tax incl.)

€125.35 (VAT Excl.)

Part-number:
VDO 340-216-008-010Z
  • Sender type: Blocking Oscillator - 400Hz
  • Thread: M18 x 1.5 Male
  • Power supply: 6.3 - 8V Stabilized
  • Sensor signal: 2-pole insulated return
  • Connector: 4-pole special OEM
Logistical information:
Limited availability of run-out itemClick here for detailed information.
  • HS Code: 90318080
  • Ean Code: 4103590933867
  • Weight: 0.09kg
Quantity

Description Blocking Oscillator speedo and tacho sender:

VDO 340 216 008 010Z Full technical specifications:

Mechanical features:

Thread:M18 x 1.5 Male
Maximum frequency:400 Hz = 24,000 Pulses per minute
Operating temperature:-40°C to +130°C
Sender length overall (L2):78.6 mm ± 1 mm
Sender element length including thread (L1):25 mm
Distance sender - pulse generator:0.3 mm to 1.4 mm
Duty cycle: (t on + t off) / t on = 1.43 to 3.33

Electrical features:

Operating voltage:6.3 - 8V DC Stabilized
Signal output:Insulated return
Connector:Connector 4-pole special
Current consumption:12 mA

Datasheets and Tables:

2010 EU VDO Sensors Catalogue DownloadPage 56 - 57
Image:Not specified by VDO

VDO Sender 340-216-008-010Z replaces manufacturer OEM number:

MERCEDES-BENZ Part number:013 542 62 17

Retail package:

  • VDO 340-216-008-010Z Blocking Oscillator tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
340-216-008-010Z

Data sheet

Measuring range
0 - 400 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Square Wave
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Country of origin
Czech Republic
Functionality
Square wave sensors
Connector type
4-pin Special
Category
Square wave sensors
Article status
Limited availability of run-out item
Alternate format
340 216 008 010Z
340/216/8/10Z

Specific References

EAN13
4103590933867
MPN
340-216-008-010Z
