VDO Oil Temperature Sensor 150°C - M14
Part-number:
VDO 323-803-014-007C
- Temperature measuring range: +50°C to +150°C
- Thread: M14 x 1.5
- Resistance Rating: 322.8 - 18.6 Ohm
- Output: Min to mass
- Warning contact: 108 °C ± 3 °C
Logistical information:
- HS Code: 90259000
- Ean Code: 4103590696090
- Weight: 0.06kg
Technical description engine and transmission oil temperature sensor:
VDO 323 803 014 007C Specifications:
Mechanical properties:
| Temperature measurement range: | +50 °C to +150 °C |
| Minimum - Maximum Operating Temperature: | -30 °C to +180 °C |
| Thread: | M14 x 1.5 |

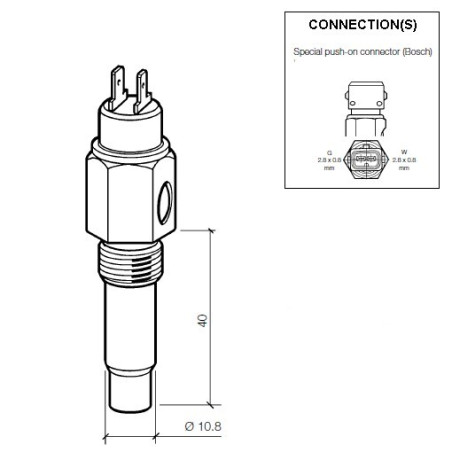

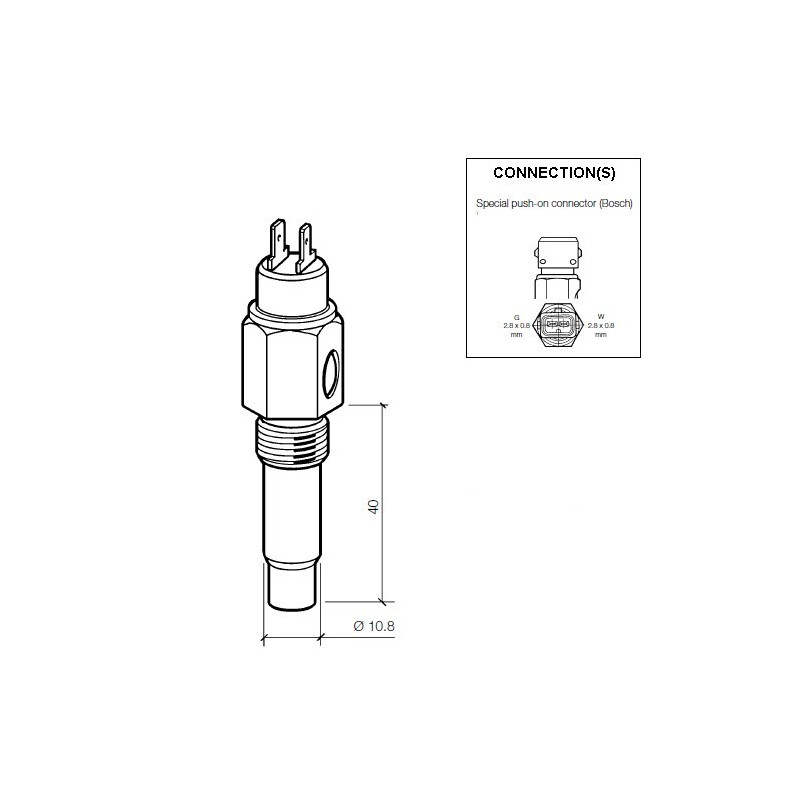

| Sensor length + thread (L): | 40 mm |
| Sensor diameter: | 10.8 mm |
| Torque: | 20 Nm |
| Temperature medium: | Oil - petroleum - diesel - gasoline - air - water - coolant |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 322.8 - 18.6 Ohm |
| Temperature sensor output signal: | 1-pole min to ground |
| Warning contact: | 108 °C ± 3 °C |
| Load warning contact | 1.2 to 3 Watt induction-free |
| Warning contact properties | Contact closes with rising temperature |
| Temperature sensor connection: | Bosch push-on connector 2.8x0.8mm |
| Warning contact connection: | Bosch push-on connector 2.8x0.8mm |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 142 - 143 |
| Type of connection: | Model: D |
| VDO And Du Temperature Sensors Tables: | VDO table: 4 - (See images) |
| Temperature 100 °C > Resistance: | 100 °C = 62.43 Ohm ± 4.71 Ohm |
| VDO Temperature sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 323 803 014 007C Temperature Sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
323-803-014-007C
Data sheet
- Temperature Measurement Range
- +50°C to +150°C
- Warning contact connector
- Bosch push-on connector 2.8x0.8mm
- Warning contact
- 108 °C ± 3 °C
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 322.8 - 18.6 Ohm
- Application
- VDO Engine control
- Signal analog
- 322.8 - 18.6 Ohm
- Sensor signal
- Minus in mass
- Sensor connector
- Bosch push-on connector 2.8x0.8mm
- Thread
- M14 x 1.5 Male
- Country of origin
- Czech Republic
- Functionality
- Oil temperature
- Connector type
- Bosch push-on connector 2.8x0.8mm
- Communication
- Analogue
- Category
- Temperature sensors
- Article status
- Discontinued product
- Alternate format
- 323 803 014 007C
323/803/14/7C
Specific References
- EAN13
- 4103590696090
- MPN
- 323-803-014-007C
