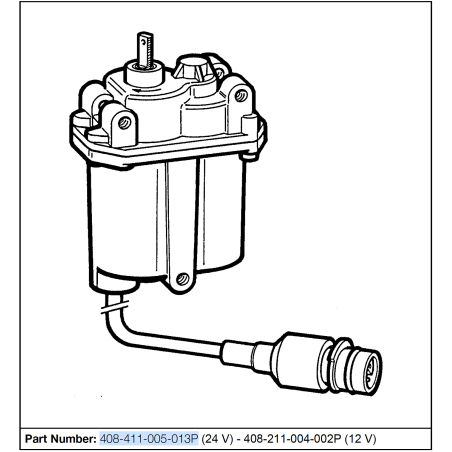

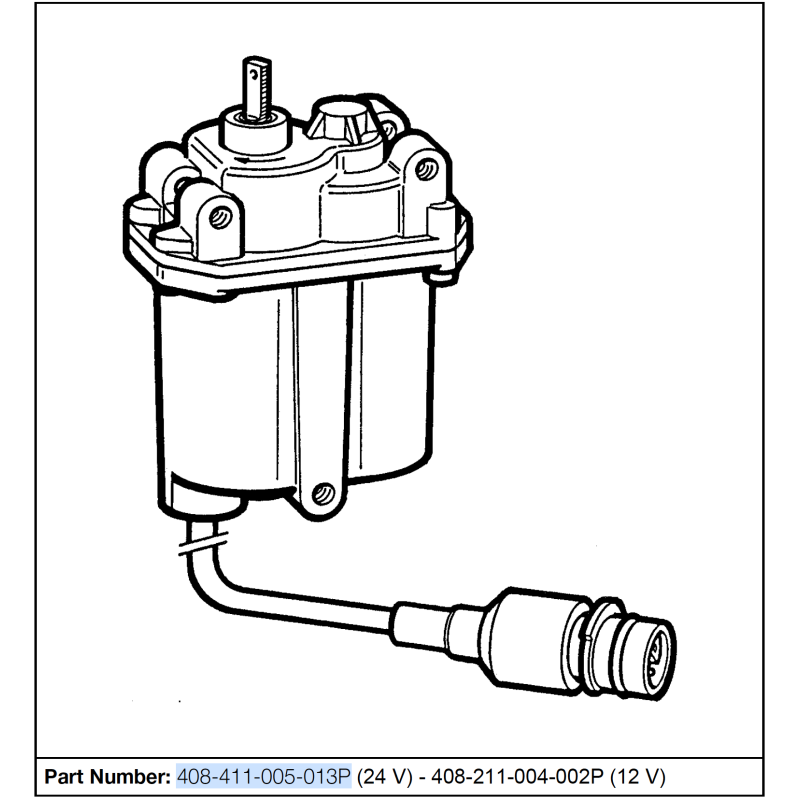

Continental VDO E-Gas II Electronic Actuator - 24 Volt - 7-Pin Connector
Part-number:
VDO 408-411-005-013P
- E-Gas II Electronic Actuator
- Torque 180 Ncm
- 24 volts
Logistical information:
- HS Code: 84818059
- Weight: 1.39kg
Description VDO E-Gas actuator 408-411-005-013P specifications:
The servomotor must not be operated against externally arranged end stops. Arrange the linkage to permit a certain external mechanical play in order for the motor to reach the internal electrical end stop in both clockwise (CW) and counterclockwise (CCW) direction.
For higher output torque requirements, see servomotor with output torque 250 Ncm (Part number 408-422-006-001).
Electrical Data:
| Operating Voltage: | 24 VDC |
| Type of drive: | PWM (Pulse Width Modulation) |
Mechanical Data:
| Output Torque: | CW/CCW 180 Ncm |
| Mechanical operating range: | 120° +/- 5° |
| Response time, full stroke CW/CCW: | < 250 ms |
| Material housing: | Aluminium |
Environmetal Data:
| Operating temperature: | -40 °C to +120 °C |
| IP Protection class: | IP54A (DIN 40050) |
| Vibration: | Max. +/-2mm, 10 - 24 Hz Max. 8g, 24 - 2000 Hz |
Package:
- 1x VDO 408 411 005 013 E-Gas actuator
408-411-005-013P
Data sheet
- Article status
- Discontinued product
