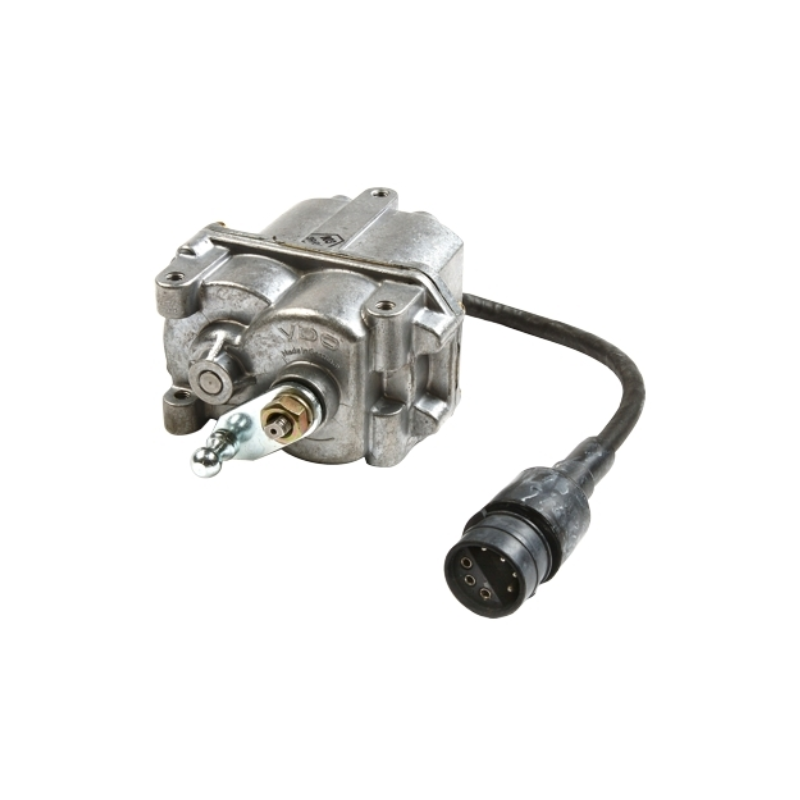

Continental VDO E-Gas II Electronic Actuator - 24 Volt
€1,758.95
(tax incl.)
€1,453.68 (VAT Excl.)
Part-number:
VDO 408-403-002-001G
- E-Gas II Electronic Actuator
- Torque 180 Ncm
- 24 volts
Logistical information:
- HS Code: 90328900
- Weight: 1.03kg
Description VDO E-Gas actuator 408-403-002-001G specifications:
The servomotor must not be operated against externally arranged end stops. Arrange the linkage to permit a certain external mechanical play in order for the motor to reach the internal electrical end stop in both clockwise (CW) and counterclockwise (CCW) direction.
For higher output torque requirements, see servomotor with output torque 250 Ncm (Part number 408-422-006-001).
Electrical Data:
| Operating Voltage: | 24 VDC (min 20 - max 30 VDC) |
| Type of drive: | PWM (Pulse Width Modulation) |
| Max current drain: | 750 mA |
| Potentiometer, serial resistance, Pin 5-7: | 1.400 Ohm |
| Resistance Pin 6-7: | ccw-min. 84 ohm cw-max 1.400 Ohm |
| Shaft contact (SK): | NC in ccw position. Max current: 1 A |
Mechanical Data:
| Output Torque: | CW/CCW 180 Ncm |
| Electrical operating range: | 102° +/- 3° |
| Mechanical operating range: | 120° +/- 5° |
| Response time, full stroke CW/CCW: | < 500 ms |
| Material housing: | Aluminium |
Environmetal Data:
| Operating temperature: | -30 °C to +120 °C |
| Storage temperature : | -40 °C to +120 °C |
| IP Protection class: | IP54A (DIN 40050, part 9) |
| Vibration: | Max. +/-2mm, 10 - 24 Hz Max. 8g, 24 - 2000 Hz |
Package:
- 1x VDO 408 403 002 001 E-Gas actuator
408-403-002-001G
Data sheet
- Article status
- Discontinued, limited available
